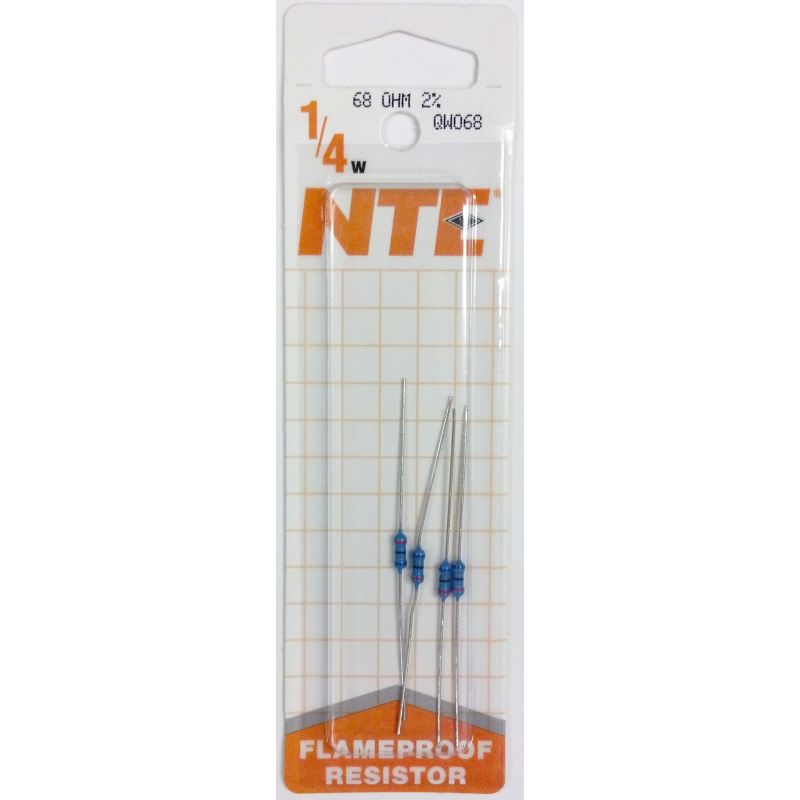

1/4 Watt Metal Resistors
QW Series
Specifications
| NTE Number | Resistance Range (Ohms) | Tolerance (%) | Voltage (Volts) | Operating Temperature (Topr) | Temperature Coefficient (PPM/°C) |
| QW1D0 thru QW9D1 | 1.0 to 9.1 | 5 | 250 | −55° to +155°C | 200 |
| QW010 thru QW430 | 10 to 300K | 2 | 250 | −55° to +155°C | 200 |
| QW433 thru QW622 | 330K to 22M | 2 | 250 | −55° to +155°C | 200 |
Mechanical Dimensions* = Inches(mm)
| NTE Number | Body Length (L) | Body Diameter (D) | Lead Diameter (d) | Lead Length (LL) |
| QW1D0 thru QW622 | 0.250 (6.5) | 0.091 (2.3) | 0.024 (0.60) | 1.18 (30.0) |
* These dimensions are for reference only.
