Vishay / Dale 101 50W POWER RESISTOR MOUNTING HARDWARE BRACKET W03

The Vishay / Dale 101 power resistor mounting hardware bracket is a fixed, corrosion-resistant metal bracket designed to securely support and fix 50W wirewound, aluminum-housed resistors (such as the RH/HL Series) onto a chassis or panel, without interfering with their electrical connections. This mounting method effectively utilizes the chassis as a heat sink for enhanced thermal performance.
Key Features Function:
Provides a secure mechanical mounting solution for chassis-mount power resistors, particularly those in the Vishay Dale RH and HL series.
Heat Dissipation: Facilitates the chassis-mount design, allowing the resistor to leverage the heat-sink effect of the panel it's mounted on, which improves power dissipation and stability.
Material: Constructed from durable, corrosion-resistant metal for long-lasting performance in various industrial and commercial applications.
Compatibility: Designed for use with resistors featuring insulated fixing connections (like the 50W RH-50 series) and for mounting on uninsulated panels.

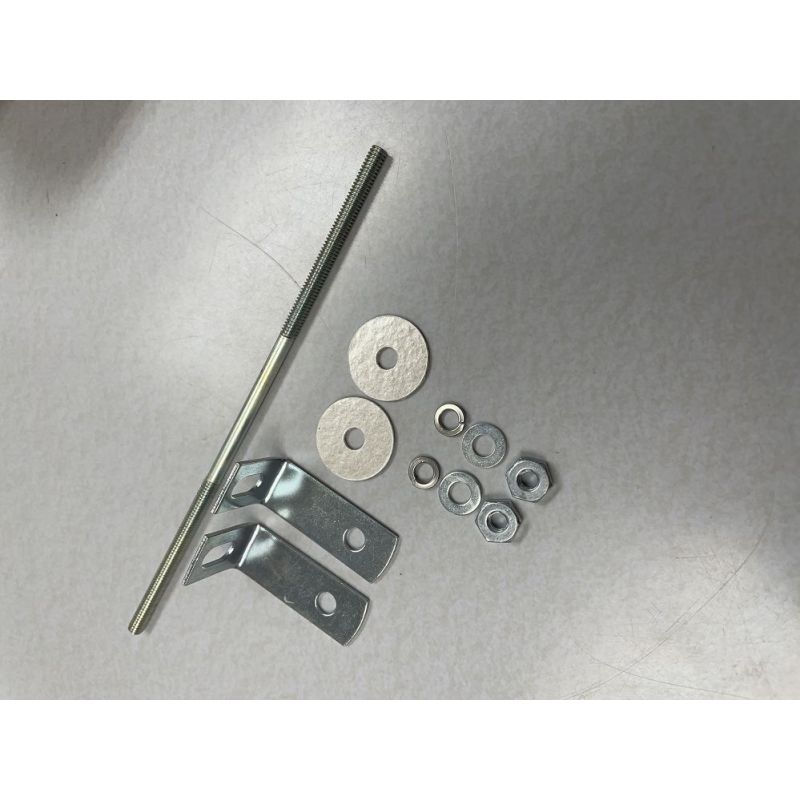

Included Hardware: Each bracket assembly typically contains all the necessary hardware components to mount one resistor securely.
