Solid State Relays

RS1 Series

RS1 Series

Features
 Opto Isolated
Upright
Contact Arrangement
SPST
Input Ratings
3 to 24VDC
Output Voltage
280VAC
Output Current
4A
Data Sheet
View Datasheet
RS2 Series

RS2 Series

Features
 Compatible with TTL Gates
Mounts on a T03 Transistor Heatsink
Contact Arrangement
SPST
Input Ratings
5 to 12VDC
Output Voltage
20 to 260VAC
Output Current
7A
Data Sheet
View Datasheet
RS3 Series

RS3 Series

Features
 AC and DC Models
Internal Snubber on AC Models
LED Input Status Indicator on some models
Contact Arrangement
SPST-NO
Input Ratings
90 to 280VAC
3 to 32VDC
Output Voltage
24 to 530VAC
0 to 100VDC
Output Current
10 to 75A (AC Types)
12 to 40A (DC Types)
Data Sheet
View Datasheet

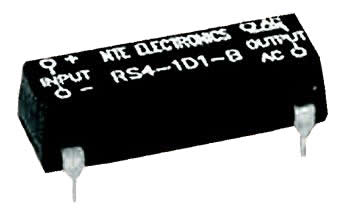

RS4 Series

RS4 Series

Features
 Current or Voltage Input Types
SCR Output
Zero Crossing Switching
Standard 16-Lead DIP w/4 Pins
Contact Arrangement
SPST
Input Ratings
10 to 35mA
3.5 to 10VDC
Output Voltage
20 to 280VAC(RMS)
Output Current
0.01 to 1A (RMS)
Data Sheet
View Datasheet
RS5 Series

RS5 Series

Features
 SCR Output
Ultra High Surge Rating
Zero Crossing and Random Turn-On Types
Contact Arrangement
SPST-NO
Input Ratings
3 to 15VDC
Output Voltage
12 to 280VAC
Output Current
5A
Data Sheet
View Datasheet
RLYB22 & 32

RLYB22 & 32

Features
Logic Compatible
Optoisolated
Zero Voltage Switching
Contact Arrangement
SPST-NO
Input Ratings
5VDC
Output Voltage
240VAC
Output Current
1.5 to 3A
Data Sheet
View Datasheet
