PC Mount

R21 Series

R21 Series

Features
Subminiature Size
Class B
Contact Arrangement
SPDT
Contact Ratings
1A,2A @ 30VDC/125VAC
Coil Voltage
6,12,24VDC
Data Sheet
View Datasheet
R22 Series

R22 Series

Features
Low Coil Power
TV-5 Type
Contact Arrangement
SPST-NO,SPDT
Contact Ratings
16A @ 30VDC/120VAC
Coil Voltage
3,5/6,12,24,48VDC
Data Sheet
View Datasheet
R23 Series

R23 Series

Features
Class B Insulation
Contact Arrangement
SPDT
Contact Ratings
20A @ 24VDC/277VAC
Coil Voltage
6,12,24VDC
Data Sheet
View Datasheet

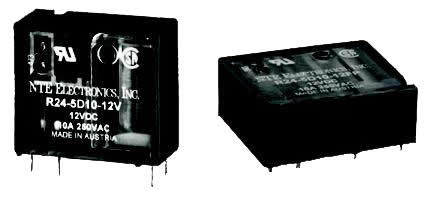

R24 Series

R24 Series

Features
Upright or Flat Package
Contact Arrangement
SPDT
Contact Ratings
8A,10A @ 28VDC/120VAC
Coil Voltage
5/6,6,12,24VDC
Data Sheet
View Datasheet
R25 Series

R25 Series

Features
Upright Package
Contact Arrangement
SPST-NO,SPDT,DPDT
Contact Ratings
10A,16A @ 28VDC/120VAC
Coil Voltage
24,120VAC
5/6,12,24,48VDC
Data Sheet
View Datasheet
R40 Series

R40 Series

Features
Standard .100" DIP Terminal Spacing
Contact Arrangement
DPDT,4PDT
Contact Ratings
2A @ 28VDC/120VAC
Coil Voltage
5/6,12,24,48VDC
Data Sheet
View Datasheet
R46 Series

R46 Series

Features
Contact Arrangement
SPDT
Contact Ratings
5A,12A @ 30VDC/120VAC
Coil Voltage
6,12,24VDC
Data Sheet
View Datasheet
R48 Series

R48 Series

Features
Epoxy Sealed
Contact Arrangement
SPDT
Contact Ratings
5A,10A @ 28VDC/120VAC
Coil Voltage
5,6,12,24VDC
Data Sheet
View Datasheet
R49 Series

R49 Series

Features
Low Height
Contact Arrangement
SPST-NO,SPDT,DPST-NO,DPDT
Contact Ratings
8A,12A,16A @ 2400VAC
Coil Voltage
12,24VDC
Data Sheet
View Datasheet
R53 Series

R53 Series

Features
Vented Cover-Fully Enclosed
Contact Arrangement
SPST-NO,SPDT
Contact Ratings
20A,30A @ 28VDC/240VAC
Coil Voltage
6,12,24,48,110VDC
Data Sheet
View Datasheet
R70 Series

R70 Series

Features
Low Power Consumption
Contact Arrangement
SPST
Contact Ratings
1A/0.5A @ 24VDC/120VAC
Coil Voltage
3,5,6,12,24VDC
Data Sheet
View Datasheet
R71 Series

R71 Series

Features
Miniature Power Relay
Contact Arrangement
SPST-NO
Contact Ratings
20A @ 250VAC
Coil Voltage
5,12,24VDC
Data Sheet
View Datasheet
R72 Series

R72 Series

Features
Latching Type
Contact Arrangement
DPDT
Contact Ratings
1A/0.5A @ 30VDC/30VAC
Coil Voltage
5,6,12,24VDC
Data Sheet
View Datasheet
R73 Series

R73 Series

Features
Contact Arrangement
SPST-NO,SPDT
Contact Ratings
10A @ 28VDC/120VAC
Coil Voltage
3,6,12,24,48VDC
Data Sheet
View Datasheet
R74 Series

R74 Series

Features
Standard .100" PC Board Spacing
Contact Arrangement
DPDT
Contact Ratings
1A @ 30VDC
Coil Voltage
3,5,6,12,24VDC
Data Sheet
View Datasheet
RLY34

RLY34

Features
Rated for D 150 Pilot Duty
 .100" Pin Spacing
Contact Arrangement
SPST-NO
Contact Ratings
5A @ 30VDC/250VAC
Coil Voltage
3,5,6,12,24VDC
Data Sheet
View Datasheet
RLY39

RLY39

Features
Contact Arrangement
SPDT,DPDT
Contact Ratings
2A @ 28VDC
1A @ 120VAC
Coil Voltage
5-6,12,24VDC
Data Sheet
View Datasheet
