General Purpose Relays
-

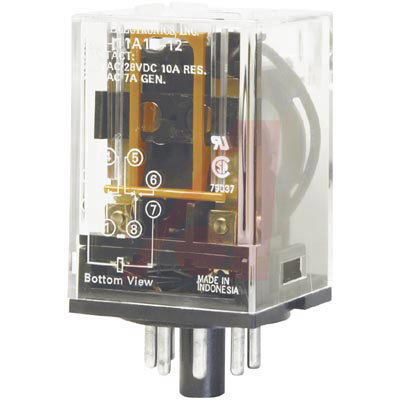

R02 Series
Features
Octal-Type PlugContact Arrangement
SPDT,DPDT,3PDTContact Ratings
10A @ 28VDC/120VACCoil Voltage
6,12,24,120,240VAC
6,12,24,110VDCData Sheet
-
R06 Series
Features
Solder TerminalsContact Arrangement
SPDT,DPDT,3PDTContact Ratings
10A @ 28VDC
12A @ 120VACCoil Voltage
24,120VAC
6,12,24,48,110VDCData Sheet
-
R10 Series
Features
.187" Quick ConnectContact Arrangement
SPDT,DPDT,3PDTContact Ratings
10A,11A,12A @ 28VDC/120VAC
Coil Voltage
12,24,120,240VAC
12,24,48,110VDCData Sheet
-
R11 Series
Features
.110", .187" Quick ConnectContact Arrangement
SPDTContact Ratings
15A @ 28VDC/277VAC
Coil Voltage
12,24,120,240VAC
12,24,110VDC -
R12 Series
Features
Slightly larger than 1 cubic inchContact Arrangement
DPDT,4PDTContact Ratings
1A,3A,5A @ 28VDC/120VAC
Coil Voltage
12,24,120,240VAC
6,12,24,48,110VDCData Sheet
-
R14 Series
Features
.187" Quick ConnectContact Arrangement
SPDT,DPDT,3PDT,4PDTContact Ratings
10A,15A @ 28VDC/120VAC
Coil Voltage
12,24,120,240VAC
6,12,24,110VDCData Sheet
-
R16 Series
Features Contact Arrangement
DPDT,4PDT,6PDTContact Ratings
3A,5A @ 28VDC/120VAC
Coil Voltage
120VAC
5/6,12,24VDCData Sheet
-
R17 Series
Features
Plug-In Terminals
Encapsulated Coil for ProtectionContact Arrangement
DPDT,DPDT-NO,4PDTContact Ratings
10A @ 28VDC/300VAC
Coil Voltage
24,120VAC
24, 115/125VDCData Sheet
-
R55 Series
Features
.250" Quick Connect
Flange MountContact Arrangement
SPST,DPDTContact Ratings
20A,25A @ 28VDC/300VAC
Coil Voltage
24,120,240VAC
12,24VDC
Data Sheet
PC Mount
-
R21 Series
Features
Subminiature Size
Class BContact Arrangement
SPDTContact Ratings
1A,2A @ 30VDC/125VAC
Coil Voltage
6,12,24VDC
Data Sheet
-
R22 Series
Features
Low Coil Power
TV-5 TypeContact Arrangement
SPST-NO,SPDTContact Ratings
16A @ 30VDC/120VAC
Coil Voltage
3,5/6,12,24,48VDC
Data Sheet
-
R23 Series
Features
Class B Insulation
Contact Arrangement
SPDTContact Ratings
20A @ 24VDC/277VAC
Coil Voltage
6,12,24VDC
Data Sheet
-
R24 Series
Features
Upright or Flat Package
Contact Arrangement
SPDTContact Ratings
8A,10A @ 28VDC/120VAC
Coil Voltage
5/6,6,12,24VDC
Data Sheet
-
R25 Series
Features
Upright Package
Contact Arrangement
SPST-NO,SPDT,DPDTContact Ratings
10A,16A @ 28VDC/120VAC
Coil Voltage
24,120VAC
5/6,12,24,48VDC
Data Sheet
-
R40 Series
Features
Standard .100" DIP Terminal Spacing
Contact Arrangement
DPDT,4PDTContact Ratings
2A @ 28VDC/120VAC
Coil Voltage
5/6,12,24,48VDC
Data Sheet
-
R46 Series
Features
Contact Arrangement
SPDTContact Ratings
5A,12A @ 30VDC/120VAC
Coil Voltage
6,12,24VDC
Data Sheet
-
R48 Series
Features
Epoxy Sealed
Contact Arrangement
SPDTContact Ratings
5A,10A @ 28VDC/120VAC
Coil Voltage
5,6,12,24VDC
Data Sheet
-
R49 Series
Features
Low Height
Contact Arrangement
SPST-NO,SPDT,DPST-NO,DPDTContact Ratings
8A,12A,16A @ 2400VAC
Coil Voltage
12,24VDC
Data Sheet
-
R53 Series
Features
Vented Cover-Fully Enclosed
Contact Arrangement
SPST-NO,SPDTContact Ratings
20A,30A @ 28VDC/240VAC
Coil Voltage
6,12,24,48,110VDC
Data Sheet
-
R70 Series
Features
Low Power Consumption
Contact Arrangement
SPSTContact Ratings
1A/0.5A @ 24VDC/120VAC
Coil Voltage
3,5,6,12,24VDC
Data Sheet
-
R71 Series
Features
Miniature Power Relay
Contact Arrangement
SPST-NOContact Ratings
20A @ 250VAC
Coil Voltage
5,12,24VDC
Data Sheet
-
R72 Series
Features
Latching Type
Contact Arrangement
DPDTContact Ratings
1A/0.5A @ 30VDC/30VAC
Coil Voltage
5,6,12,24VDC
Data Sheet
-
R73 Series
Features
Contact Arrangement
SPST-NO,SPDTContact Ratings
10A @ 28VDC/120VAC
Coil Voltage
3,6,12,24,48VDC
Data Sheet
-
R74 Series
Features
Standard .100" PC Board Spacing
Contact Arrangement
DPDTContact Ratings
1A @ 30VDC
Coil Voltage
3,5,6,12,24VDC
Data Sheet
Power Relays
-
R04 Series
Features
Screw Terminals
Contact Arrangement
SPST-NO,SPDT,DPST-NO,DPDTContact Ratings
30A @ 28VDC/120VAC
Coil Voltage
12,24,110VDC
12,24,120,240VAC
Data Sheet
-
R18 Series
Features
Jones Plug Terminals
Switches Tungsten Lamp Lamp
Contact Arrangement
DPDTContact Ratings
20A @ 28VDC/120VAC
Coil Voltage
120VAC
Data Sheet
-

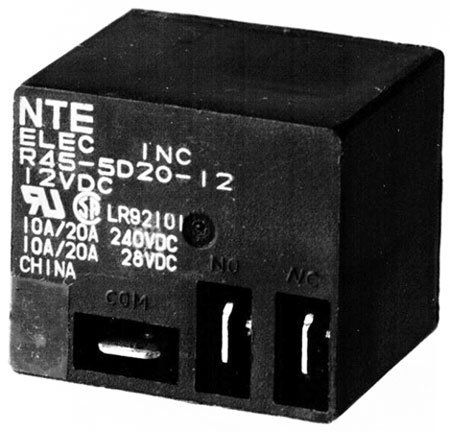

R45 Series
Features
Epoxy Sealed
.250" Quick Connect
Printed Circuit Terminals on Bottom
Contact Arrangement
SPST-NO,SPDTContact Ratings
20A,30A @ 28VDC/300VAC
Coil Voltage
5,12,24,VDC
Data Sheet
-
R54 Series
Features
Screw Terminals
Contact Arrangement
SPST-NO,SPDT,DPST-NO,DPDTContact Ratings
30A @ 28VDC/120VAC
Coil Voltage
12,24,110VDC
12,24,120,240VAC
Data Sheet
-

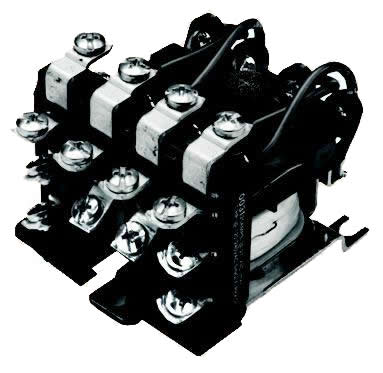

RLY16 & 17 Series
Features
Buzz-Free Shaded AC Coil
Contact Arrangement
4PDTContact Ratings
25A @ 277VAC
10A @ 28VDC
Coil Voltage
12,24VDC
24,120,240VAC
Data Sheet
Impulse/Latching Relays
-
R50 Series
Features
.187" Quick Connect
Magnetic Latching
Contact Arrangement
SPDT,DPDTContact Ratings
10A @ 28VDC/120VAC
Coil Voltage
12,24VDC
120VAC
Data Sheet
Reed Relays
-
R42 Series
Features
.200" SIP Terminal Spacing
TTL Compatible
Internal Clamping Diode
Contact Arrangement
SPST-NOContact Ratings
500mA @ 28VDC
Coil Voltage
5/6,12,24VDC
Data Sheet
-
R44 Series
Features
Standard .100" PC Board Spacing
TTL Compatible
Contact Arrangement
SPST-NO,DPST-NOContact Ratings
5A Switching
2A Carry
@ 200VDC
Coil Voltage
5/6,12,24VDC
Data Sheet
-
R56 Series
Features
Standard .100" DIP Terminal Spacing
TTL Compatible
Contact Arrangement
SPST-NO,SPDT,DPST-NOContact Ratings
500mA @ 28VDC
Coil Voltage
5,6,12,24VDC
Data Sheet
-
R57 Series
Features
Standard .100" DIP Terminal Spacing
TTL Compatible
Contact Arrangement
SPST-NO,SPST-NC,SPDTContact Ratings
250mA,500mA @ 28VDC
Coil Voltage
5/6,12,24VDC
Data Sheet
Automotive Relays
-
R51 Series
Features
.250" Quick Connect
Contact Arrangement
SPST-NO,SPDTContact Ratings
50A,70A @ 14VDC
Coil Voltage
12,24VDC
Data Sheet
-
R52 Series
Features
Standard U.S. Footprint
Contact Arrangement
SPST-NO,SPDTContact Ratings
40A @ 14VDC
Coil Voltage
12VDC
Data Sheet
-
Other Auto Relays
Features
.110" / .187" / .250" Quick Connect
Contact Arrangement
SPST-NO,SPDTContact Ratings
30A,40A @ 12VDC
Coil Voltage
12,24VDC
Time Delay Relays
-
R28 Series
Features
Knob Adjustable
8-Pin Octal Base
3 Timing Ranges
±0.1% Repeatability
Mode of Operation
Delay on OperateContact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12VDC
Data Sheet
-
R30 Series
Features
Knob Adjustable
8-Pin Octal Base
3 Timing Ranges
±0.1% Repeatability
Mode of Operation
Interval TimeContact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
24VDC, 120VAC
Data Sheet
-
R32 Series
Features
Knob Adjustable
11-Pin Octal Base
3 Timing Ranges
±0.1% Repeatability
Mode of Operation
Delay on Release
(Slow Release)Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
120VAC/DC,24VDC/AC
Data Sheet
-
R36 Series
Features
Knob Adjustable
.187" Quick Connect
2 Timing Ranges
±0.1% Repeatability
Mode of Operation
Delay on Release
Contact Arrangement
DPDTContact Ratings
12A @ 28VDC/120VAC
Input Voltage
120VAC
Data Sheet
-
R38 Series
Features
Knob Adjustable
8-Pin Octal Base
2 Timing Ranges
±0.1% Repeatability
Mode of Operation
Repeat Cycle Timer
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
120VAC
Data Sheet
Programmable Time Delay/Multifunction Relays
-
R26 Series
Features
Knob/Flip Switches Adjustable
8-Pin Octal Base
16 Timing Ranges
±0.5% Repeatability
Mode of Operation
Repeat Cycle Timer
(OFF Time followed by ON)
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12,24,120VAC/DC
Data Sheet
-
R27 Series
Features
Knob/Flip Switches Adjustable
8-Pin Octal Base
16 Timing Ranges
±0.5% Repeatability
Mode of Operation
Repeat Cycle Timer
(ON Time followed by OFF)
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12,24,120VAC/DC
Data Sheet
-
R60 Series
Features
Knob/Flip Switches Adjustable
8-Pin Octal Base
16 Timing Ranges
±0.5% Repeatability
Mode of Operation
Delay on Operate
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12,24,120VAC/DC
Data Sheet
-
R63 Series
Features
Knob/Flip Switches Adjustable
8-Pin Octal Base
16 Timing Ranges
±0.5% Repeatability
Mode of Operation
Interval ON
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12,24,120VAC/DC
Data Sheet
-
R61 Series
Features
Knob/Flip Switches Adjustable
11-Pin Octal Base
16 Timing Ranges
±0.5% Repeatability
Mode of Operation
Delay on Release
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12,24,120VAC/DC
Data Sheet
-
R62 Series
Features
Knob/Flip Switches Adjustable
11-Pin Octal Base
16 Timing Ranges
±0.5% Repeatability
Mode of Operation
Single Shot
Contact Arrangement
DPDTContact Ratings
10A @ 28VDC/120VAC
Input Voltage
12,24,120VAC/DC
Data Sheet
Solid State Relays
-
RS1 Series
Features
Opto Isolated
UprightContact Arrangement
SPSTInput Ratings
3 to 24VDCOutput Voltage
280VACOutput Current
4AData Sheet
-
RS3 Series
Features
AC and DC Models
Internal Snubber on AC Models
LED Input Status Indicator on some models
Contact Arrangement
SPST-NOInput Ratings
90 to 280VAC
3 to 32VDC
Output Voltage
24 to 530VAC
0 to 100VDC
Output Current
10 to 75A (AC Types)
12 to 40A (DC Types)Data Sheet
-
RS4 Series
Features
Current or Voltage Input Types
SCR Output
Zero Crossing Switching
Standard 16-Lead DIP w/4 Pins
Contact Arrangement
SPSTInput Ratings
10 to 35mA
3.5 to 10VDC
Output Voltage
20 to 280VAC(RMS)
Output Current
0.01 to 1A (RMS)Data Sheet
-
RLYB22 & 32
Features
Logic Compatible
Optoisolated
Zero Voltage Switching
Contact Arrangement
SPST-NOInput Ratings
5VDC
Output Voltage
240VAC
Output Current
1.5 to 3AData Sheet
Input/Output Modules
-
RIM-IAC Series
Features
AC Input Module
Optically Isolated
Standard or Slim PackageInput Ratings
120,240VACOutput Voltage
30VDCOutput Current
50mAData Sheet
-
RIM-IDC Series
Features
DC Input Module
Optically Isolated
Standard or Slim PackageInput Ratings
5,15,24VDCOutput Voltage
2.75 to 30VDCOutput Current
50mAData Sheet
-
RIM-OAC Series
Features
AC Input Module
Optically Isolated
Standard or Slim PackageInput Ratings
5,15,24VDCOutput Voltage
12 to 280VACOutput Current
3 to 3.5AData Sheet
-
RIM-ODC Series
Features
DC Input Module
Optically Isolated
Standard or Slim PackageInput Ratings
5,15,24VDCOutput Voltage
3 to 60VDCOutput Current
3AData Sheet
Special Function Devices
-
R68 Series
Features
Protection Against Phase Loss, Phase Reversal, Phase Unbalance and UndervoltageContact Arrangement
SPDTContact Ratings
10A @ 30VDC/240VACInput Voltage
208-480VACData Sheet
Cube Timers
-
RLY230
Features
Delay on Operate
Solid State
.250" Quick ConnectTime Delay Selection Method
Binary Switch ProgrammableSwitch Configuration Solid State
SPSTSwich Current
20mA to 1AOperating Voltage Range
95-145VAC
50/60HzData Sheet
-
RLY240
Features
Interval ON
Solid State
.250" Quick ConnectTime Delay Selection Method
Knob AdjustableSwitch Configuration Solid State
SPSTSwich Current
40mA to 1AOperating Voltage Range
19-288VDC/AC
50/60HzData Sheet
-
RLY260
Features
Delay on Operate
High Power
.250" Quick ConnectTime Delay Selection Method
Knob AdjustableSwitch Configuration
SPSTSwich Current
500mA to 30AOperating Voltage Range
120VAC ±20%
12VDC ±20%Data Sheet
-
Other Timing Relays
Features
Screw Terminal Connections
Contact Arrangement
SPDT NO or NCContact Ratings
16A @ 120VAC
Coil Voltage
12VDC / 120VAC
Contactors
-
RLY530
Features
Definite Purpose Contactor
#10−32 Combination Screw
.250” Dual Quick Connect
Contact Arrangement
SPST−NO,DPST−NO,3PST−NOContact Ratings
30A @ 600VAC
100LRA @ 600VAC
(1 & 2 Pole)
120LRA @ 600VAC (3 Pole)Coil Voltage
24,120,240VACData Sheet
-
RLY540
Features
Definite Purpose Contactor
#14−4 Compression Lugs
.250” Dual Quick Connect
Contact Arrangement
SPST−NO,DPST−NO,3PST−NOContact Ratings
40A @ 600VAC
120LRA @ 600VAC (1 & 2 Pole)
160LRA @ 600VAC (3 Pole)Coil Voltage
24,120,240VACData Sheet
-
RLY550
Features
Definite Purpose Contactor
#14−4 Compression Lugs
.250” Dual Quick Connect
Contact Arrangement
3PST−NOContact Ratings
50A @ 600VAC
200LRA @ 600VACCoil Voltage
24,120,240VACData Sheet
Socket/Accessories
Relays & Contactors
Elliott Electronic Supply is a major domestic distributor of electronic components and Relays & Contactors with no minimum order. Choose from a wide selection of in stock Relays & Contactors and accessories.
