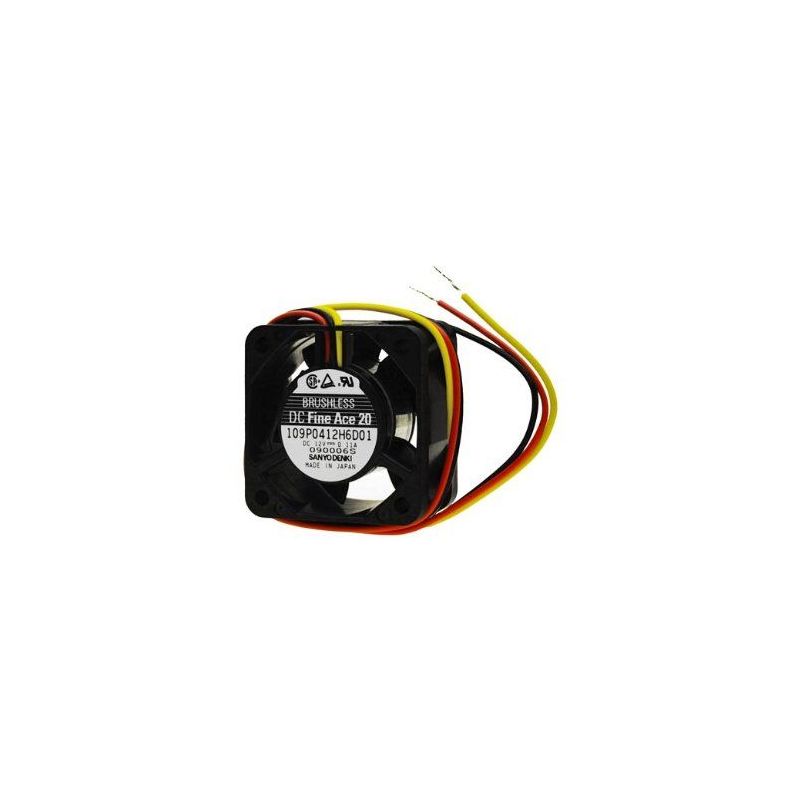

Sanyo 40MM x 20MM 12VDC .11A Fan

40×40×20 mm, 3 Wire Fan, 3rd Wire available for a sensor if needed. San Ace 40 9P type ■ General Specifications ・ Material ………………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1) ・ Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) ・ Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection ・ Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame) ・ Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame) ・ Sound pressure level (SPL) ……………… At 1 m away from the air inlet ・ Storage temperature ……………………… -30 to +70˚C (Non-condensing) ・ Lead wire ……………………………………… Red Black or Blue Sensor Yellow ・ Mass ……………………………………………… 45 g
