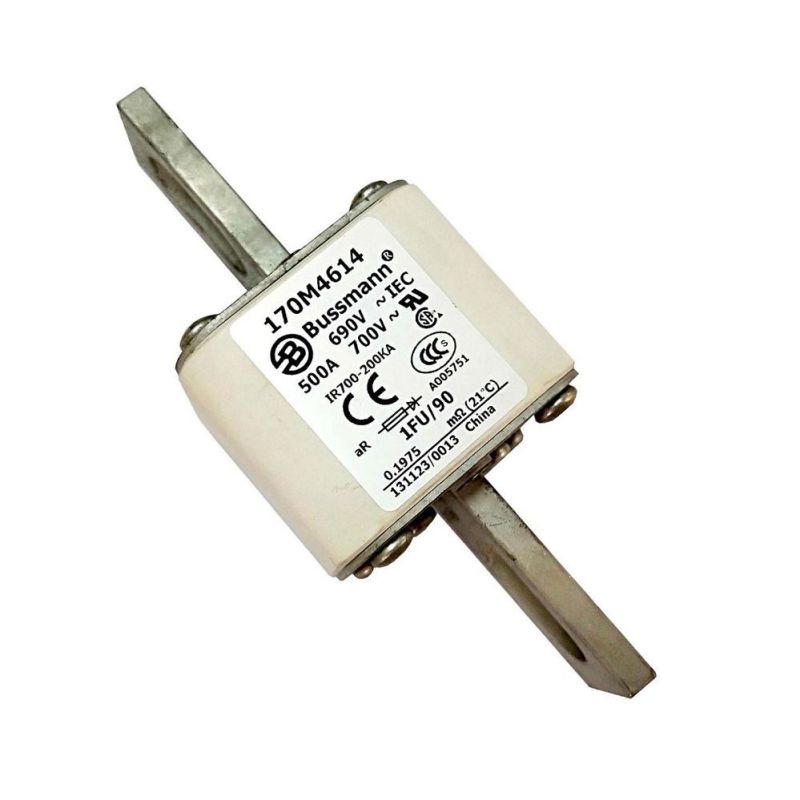

170M Series
690 Vac (IEC), 700 Vac (UL), 40 to 2000 A
Square body US style bolted tags high speed fuses for the
protection of DC common bus, DC drives, power converters/
rectifiers and reduced rated voltage starters. Available with Type K
indicator for a microswitch.
Ratings
• Volts
• 500 to 700 Vac (see catalog number table)
• 750 Vdc (UL, see catalog number table for specific fuses)
• Amps 40-2000 A
• IR 200 kA RMS Sym.
Operating class aR
Agency information
• Designed and tested to IEC 60269 Part 4
• UL Recognized, JFHR2*, E125085
• CSA Class 53787, File 1422-30*
• CCC
• CE
Other 170M Series Sourcing Available
