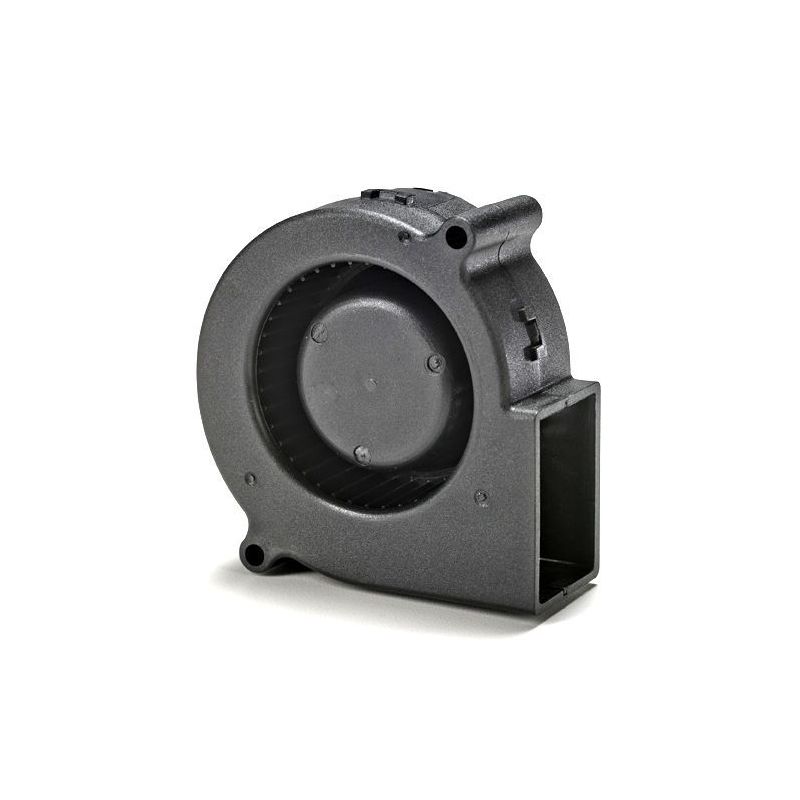

24V DC .24A Side Blower Fan RBH7530B2 Brushless 75mm x 30mm 2 Wire
Specifications
Bearing System Ball
Voltage 24.0 V
Voltage Range (V) 12.0V to 27.6V
Current 0.24 A
Speed 3500 rpm
Airflow (Q) 21 m³/h
0.35 m³/min
12.3 cfm
Pressure (P) 13.1 mmAq
0.52 inH2O
Noise (dBA) 43
Dielectric Strength 1500VAC (1mA/1min) or 600VAC (2 sec)
Insulation Resistance >500M? mO
Motor Brushless DC with permanent magnet
Frame Reinforced Plastic PBT, Class UL94V-0)
Impeller Reinforced Plastic PBT, Class UL94V-0)
Lead Wires (L) UL1007, 28AWG/300mm; Red(+); Black
Operating Temperature -10 to +70 ºC
Storage Temperature -40 to +80 ºC
Acoustical Anechoic chamber at free air.
Protection Polarity Protection
