RED LED DC VOLT DIGITAL PANEL METER 3.2v-30V V27D-T1
RED LED DC VOLT DIGITAL PANEL METER 4-30VDC, for a 30MM hole size

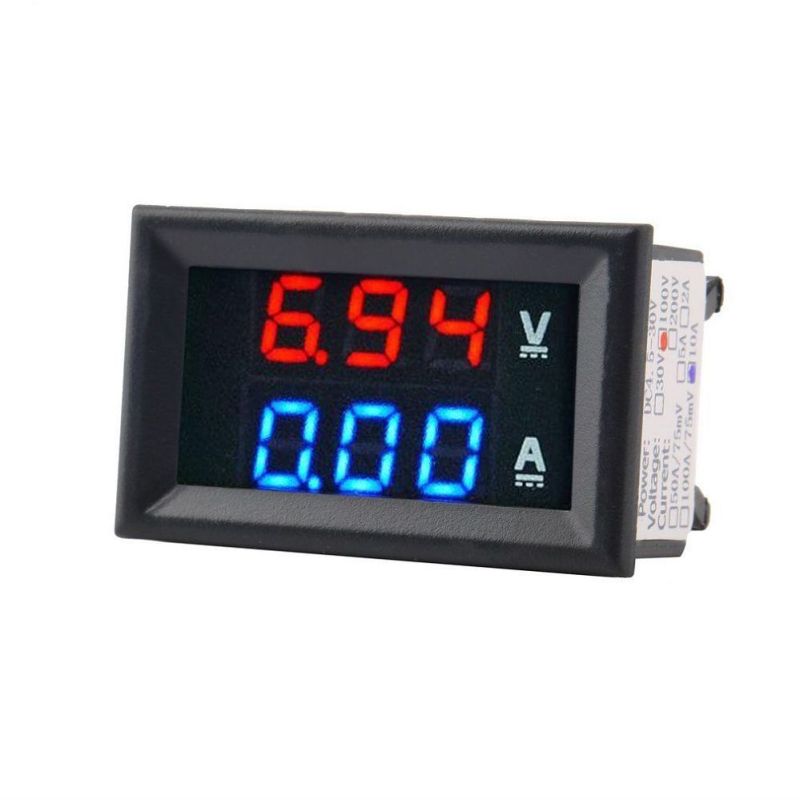

RED & BLUE LED DC VOLT and AMP DIGITAL PANEL METER 0-100VDC 0-10A DC
Specifications:
Working voltage: 4.5-30V DC.
Current measurement above 10Amps requires external shunt (not provided)
Current draw: ≤20mA.
Display: 0.28" in dual colors blue and red.
Measuring range: DC 0-100V 0-10A
Wiring: See Wiring diagram 1 or 2.
Minimum resolution (V): 0.1V
Refresh rate: ≥100mS / times
Measure accuracy: 1% (± 1 digit)
Minimum resolution (A): 0.01A
Operating temperature: -15 to 70° c
Working pressure: 80 to 106 kPa
Size :47 x 28 x16 mm/1.85*1.10*0.63"
Net Weight:19 g
Weight:29 g
ZC15400
