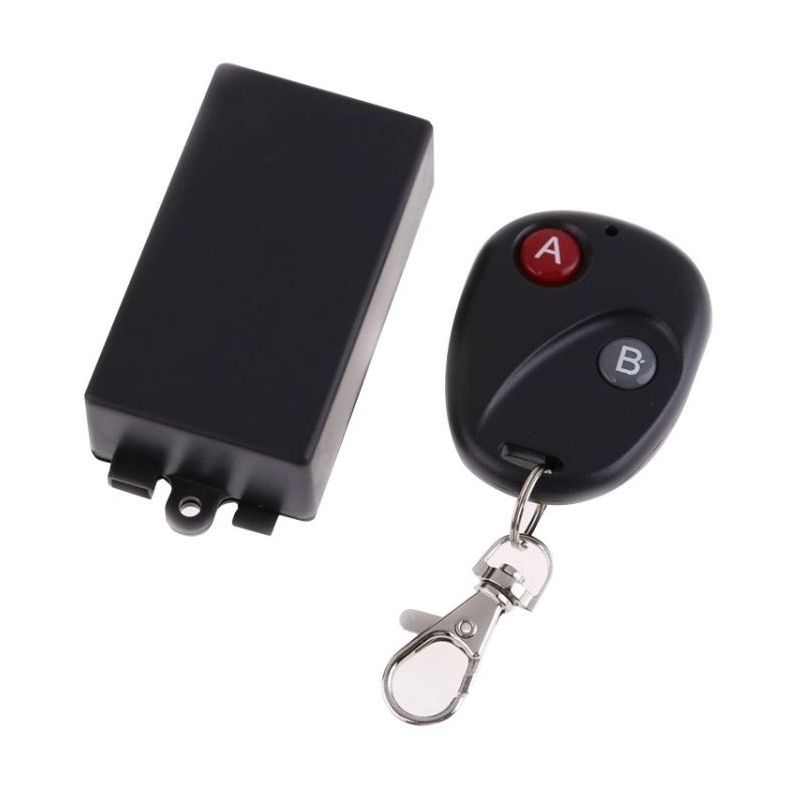

12VDC 1CH RF Wireless Remote Switch, Learning Code Receiver, 2 Buttons Remote Control Transceiver

1. These units can be used for starting and stopping, wireless switching of connections on and off. 2. Each device connected will need to be powered by its own power source through the relay box (there is no voltage output from the switch, it only acts as a connect / dis-connect for an existing live circuit). 3. If using a 12V device it can be wired in parallel with the switch power supply. Ideal use in 1. Vehicle central locking systems 2. Garage doors 3. Electronic gates 4. TV, Motors, Fans, Cameras, Video Signals, Audio Signals, RC applications, Electric 5. Doors/ Locks/ Windows/ Curtains and more 6. Lightweight and portable 7. Easy to install and use 1.Working Voltage: DC12V 2.Current:Standby≤10mA,Working ≤128mA 3.Working Temperature: -20'C—+60'C 4.Receiver Frequency: 315MHz/433.92MHZ 5.Receiving Sensitivity: -105dB 6.Output State: Switching Value 7.Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A 8. Receiver Board Size:50*34*16mm Case Size:63*38*22mm 9.Power LED Relay LED Learning LED Learning Code: Add transmitter by the Learning Button on the receiver Output State: It is adjusted by the Jumper on the Receiver Board, (before you change it .you need turn OFF the power. Until you have changed it, then turn ON the power again, or the State will not be changed) Momentary----------Take away the Jumper or put the Jumper on 1 Pin Toggle----------------Jumper "2& 3 Pin" Latched--------------Jumper "1&2"Pin Momentary ------------Press the Transmitter button and keep, the receiver relay is ON, release button, the receiver relay is OFF, Toggle ---------------Press transmitter button for 1 time, the receiver relay is ON, press button again, the receiver relay is OFF, Latched ------------------Press transmitter button A, the receiver relay A is ON, Press Button B, the Receiver is OFF Learning Method Input power for the Receiver .Press the Learning Button until the Led indicator ON. Then press transmitter, as your hear the Relay act, it mean learning successfully. Clearing Code Keeping press the Learning Button on the receiver until the LED indicator ON to Off, it mean the code have been cleared successfully.
