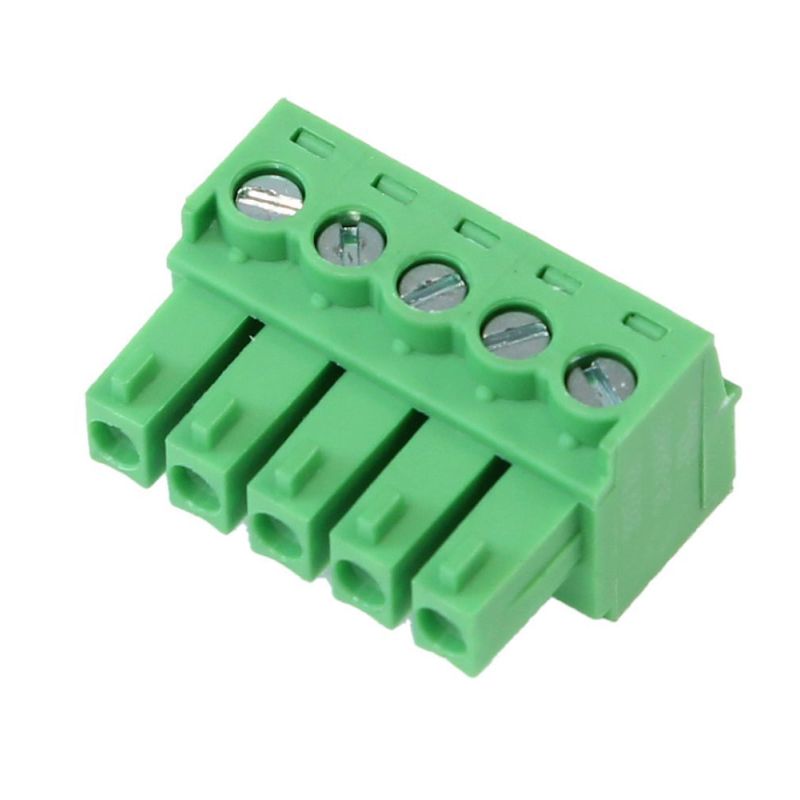

EURO PLUG PHOENIX 5 POSITION TERMINAL BLOCK
The 1803578 from Phoenix Contact is a 5 position pluggable terminal block with screw connection. This terminal block comes with 3.81mm pitch spacing and suitable for wire size ranging from 28AWG to 16AWG.
Green colour insulation
Tin contact surface
Plug-in direction parallel to the conductor axis
Individual position coding by removing the coding tab & connecting the coding profile to the header
Polyamide (PA) insulating material
CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
Dimension of terminal block is 16.1mm x 11.1mm x 19.9mm (L x H x W)
