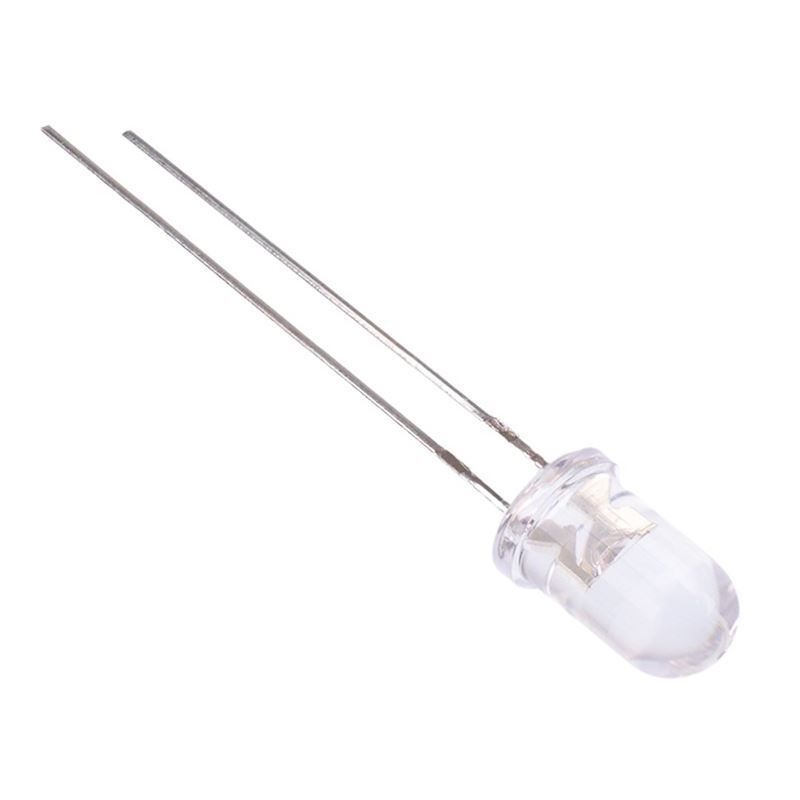

3PK INFRARED EMITTING DIODE 3MM 30MW TYP 940NM IR LED

Electrical Characteristics: (TA = +25°C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Viewing Angle of Half Power 2θ1/2 IF = 50mA − 30 − degree Forward Voltage VF IF = 50 mA − 1.28 1.50 V Reverse Current IR VR = 5.0V − − 10 uA Radiant Output Power PO IF = 50 mA (Note 2) 15 30 − mw/sr Peak Emission Wavelength λp IF = 50 mA − 940 − nm Spectrum Width of Half Valve ∆λ IF = 50 mA − 50 − nm Terminal Capacitance Ct V = 0, F = 1MHz − 40 − pF
