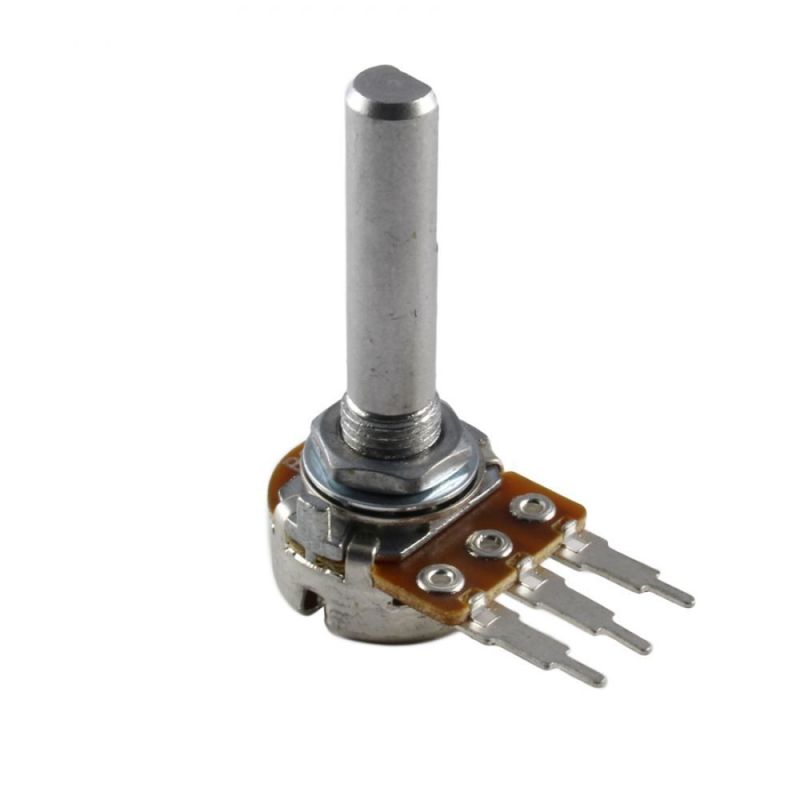

5K AUDIO POTENTIOMETER, 1/4 Inch Shaft, Single Turn

5K AUDIO POTENTIOMETER, 1/4 Inch Shaft, Single Turn

$3.00
Add Items to Cart Add to Cart

Quick Overview

Item# 502-0306
16mm Potentiometer Potentiometer − 0.1 Watt and 0.2 Watt, 6mm dia. shaft, Single Turn
Specifications Electrical Resistance Range − Linear Taper: 1K to 1 Meg Resistance Range − Audio Taper: 1K to 1 Meg Resistance Tolerance: 20% Sliding Noise: less than 47mV Residual Resistance: 20 (R > 10K) 10 (R 10K) Insulation Resistance: more than 100 Meg at 500VDC Operating Voltage: 150VAC Rated Power − Linear Taper: 0.2W Rated Power − Audio Taper: 0.1W Withstand Voltage: 1 minute at 500VAC Mechanical Total Rotation Angle: 300 5 Rotation Torque: 30gf.cm to 200gf.cm Rotation Stopper Strength: 8Kgf.cm Max Shaft Push−Pull Strength: 7Kgf.‘ Max Rotation Life: 15,000 cycles Mounting Hole: .312” (7.9mm) dia. Environmental Operating Temperature: −10 C to +70 C Resistance to Soldering Heat: 260 C for 3 seconds


Weight (lbs.) 0.0400
Potentiomter Options 1/4" Shaft, Audio Taper
