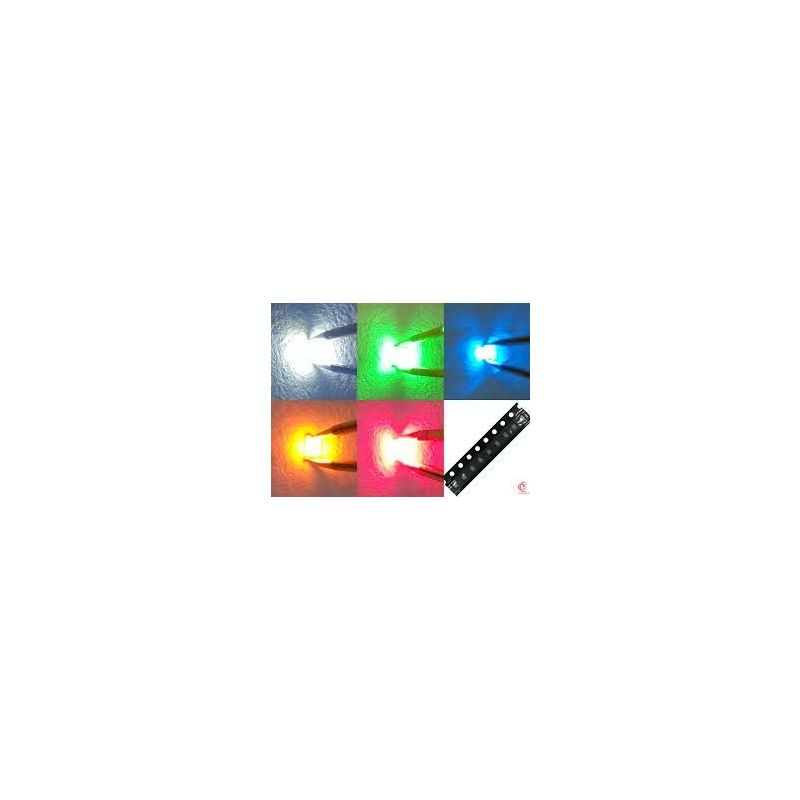

5PK LED YELLOW CLEAR 0805 CASE SURFACE MOUNT 8 MCD SUPER BRIGHT

Electrical/Optical Characteristics: (TA = +25°C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Luminous Intensity NTE30002 IV IF = 20mA 5 12 - mcd NTE30003 4 15 - mcd NTE30004 2 8 - mcd Parameter Symbol Test Conditions Min Typ Max Unit Forward Voltage NTE30002 VF IF = 20mA - 2.0 2.5 V NTE30003 - 2.2 2.5 V NTE30004 - 2.1 2.5 V Reverse Current IR VR = 5V - - 10 μA Peak Emission Wave Length NTE30002 λP IF = 20mA - 627 - nm NTE30003 - 565 - nm NTE30004 - 590 - nm Dominate Wavelength NTE30002 λD IF = 20mA - 625 - nm NTE30003 - 568 - nm NTE30004 - 588 - nm Spectral Line Half Width NTE30002 Δλ IF = 20mA - 45 - nm NTE30003 - 30 - nm NTE30004 - 25 - nm Capacitance NTE30002, NTE30003 C VF = 0V, f = 1MHz - 15 - pF NTE30004 - 20 - pF
