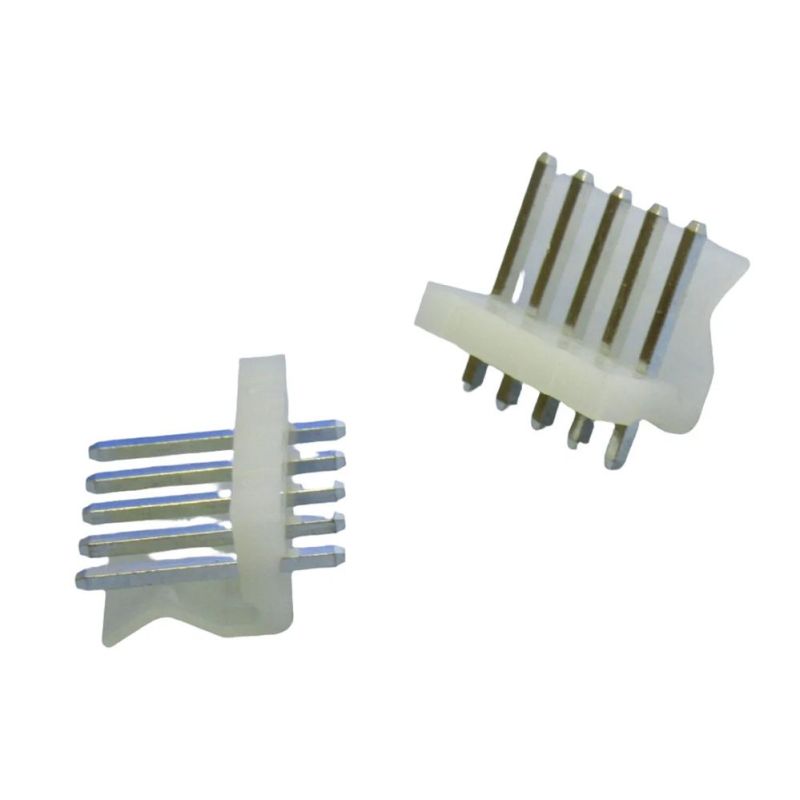

2PK Male POLARIZED HEADER .156 5 POSITION

.156” CENTERS LOCKING POLARIZED HEADERS: Width: .312” Voltage Rating: 250V AC, DC Current Rating: 5 A AC, DC Withstand Voltage: 1000V AC/minute Insulation Resistance: 1000m ohm Minute Temperature Range: -25ºC - +85ºC Applicable PC Board: .063” (1.6mm) Thickness: Initial Value / 10 ohms Max. Contact Resistance: After environmental testing / 20m ohms max. Material: Post - Brass / Tin Plate Base - Nylon 66, UL 94V-2
