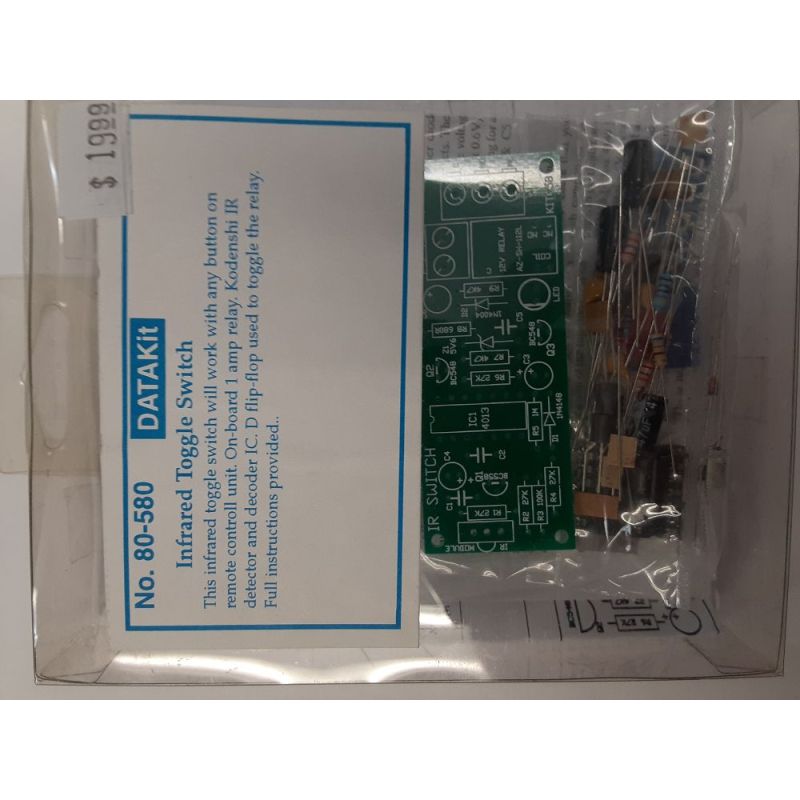

Infrared Toggle Switch
Control
about any
device using
the remote
control from
just about
any TV set.
The circuit switches an on-board SPDT relay;
turn it on with the remote, and turn it off with
another signal. The relay contacts are rated
one amp at 125 volts AC. The circuit operates
on any DC supply from 8 to 15 volts; use an
old calculator supply etc.. This circuit can
have some very practical applications, such
as turning on a light by an invalid. Your imagination is the limit.
