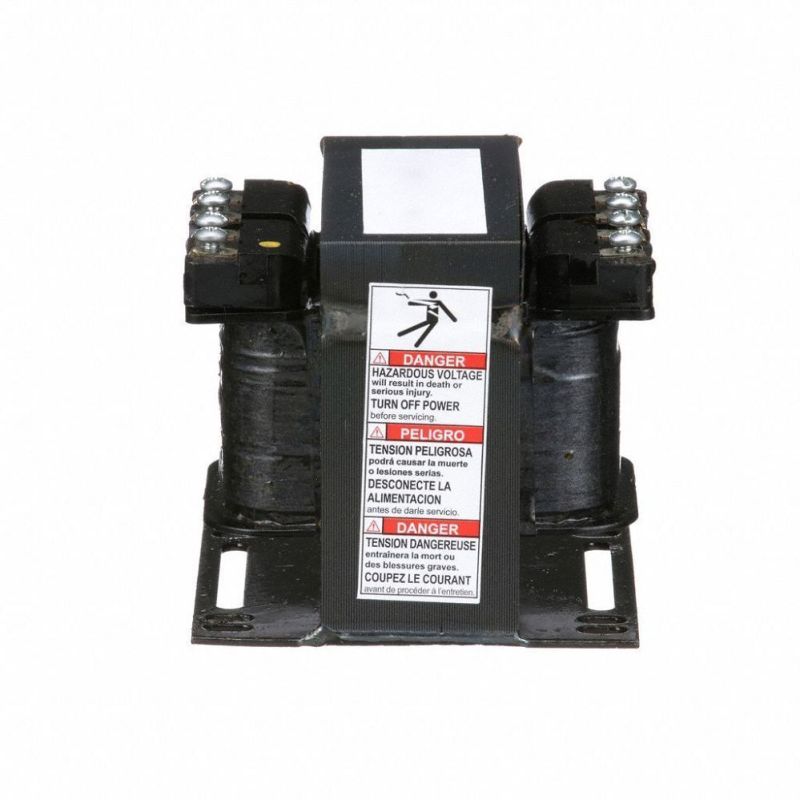

Square D Transformer, Pri: 120, Sec. 12VAC or 24VAC 100VA

The 9070T100D13 is a single-phase Square D Type T Industrial Control Transformer manufactured by Schneider Electric. It is specifically designed to step down voltage for control circuits in industrial applications, such as machine tool panels.

Key Technical Specifications Feature Specification

Power Rating 100 VA (0.1 kVA)

Primary Voltage 120 V AC

Secondary Voltage 12/24 V AC (Dual secondary)

Frequency 50/60 Hz

Temperature Rise 55 °C

Winding Material Copper Enclosure Open style (Core & Coil)

Physical Dimensions & Mounting Size: 3.38" W x 3.34" D x 2.89" H.

Mounting: Foot/Panel mount featuring 0.48" L x 0.2" W slots.

Terminals: Screw clamp terminals for secure electrical connections.

Weight: Approximately 4.2 lbs (1.9 kg).
