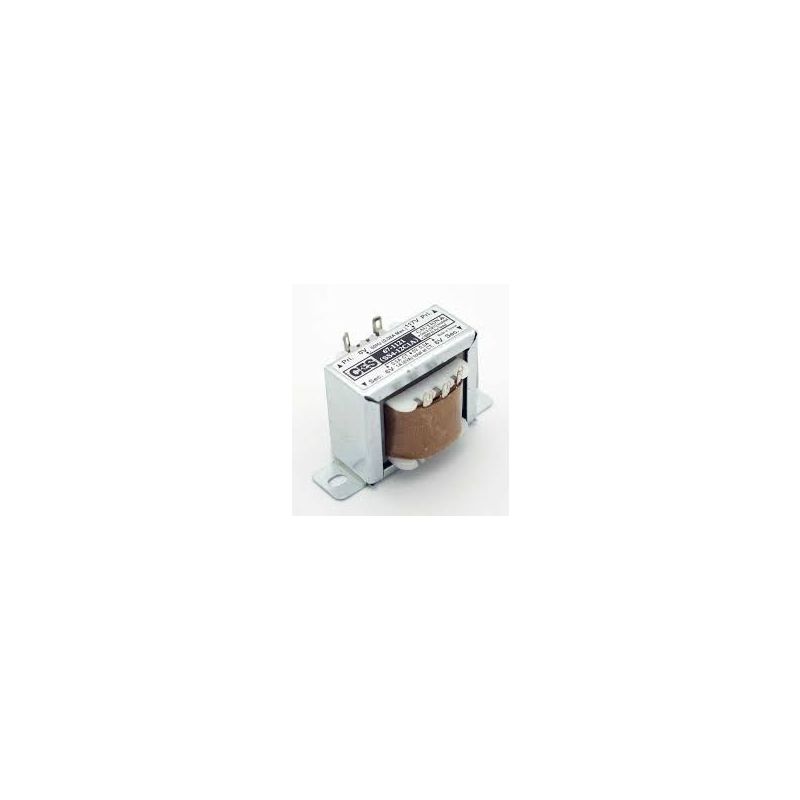

AC TRANSFORMER 120VAC Input, 12VAC output center tap for 6VAC, 1A
AC TRANSFORMER 120VAC Input, 12VAC output center tap for 6VAC, .5A
Primary Input Voltage 117vac
Output Voltage 12VCT
Solder Lug/Push-on Terminals
Class A Rated @ 105ºC Insulated
1,000 Volt Hi-Pot Tested
Rated Output 12vac
Current 500ma
Rating Frame Size Mounting Hole EI-41x14.5
Center to Center 2.07"
Overall Thickness/Width (Inches) 1.29 x 1.69
(Excluding Mounting Tabs) Height 1.41"
