20K ohm Linear Tapper Pot Potentiometer Control, With SPST Switch 3A at 125V and 1A at 250V 1/4 inch diameter x 3/8 inch long Split shaft. CTS CENTRALAB
50K ohm Linear Tapper Pot Potentiometer Control, With SPST Switch 1/4 inch diameter x 3/4 inch long Split shaft.

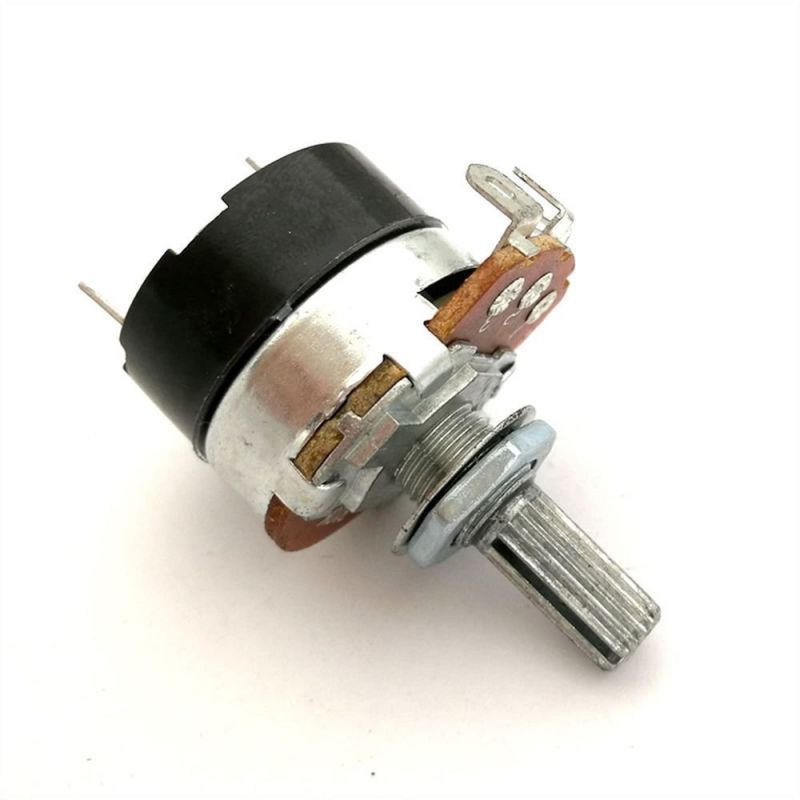

POTENTIOMETER with SWITCH 50K 2W, SPST, LINEAR, 1/4 Inch Fluted Spline Shaft
Specifications:
With Switch SPST
Potentiometer Linear
Power Max 2W
Single Turn
Resistance 0 to 50K Ohm
Mounting 5/16" Hole
0.10 x 0.06" Anti-Slip Pin 0.437 from center
0.275" Thread Length
M7-0.75mm Thread
Connections Solder
Shaft Knurled, 18 Tooth, Slotted
6mm Outside Diameter
0.485" Length
Washer 0.015" Thickness
0.54" Outside Diameter
Nut 0.085" Thickness
9/16" Outside Diameter
