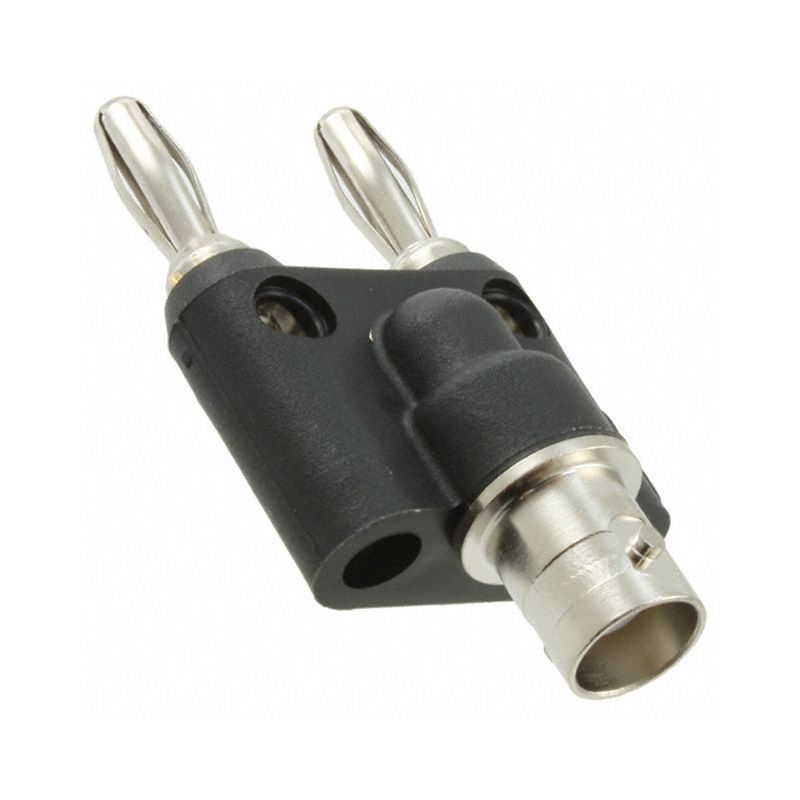

BNC FEMALE TO DUAL DOUBLE STACKING BANANA PLUG
FEATURES:
· Adapter converts Double Banana Jack Test Instruments to BNC Coaxial configuration for added shielding
protection.
· For test versatility, banana plugs can be vertically and horizontally stacked to the adapter.
· Banana Plug features Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life.
· The BNC center contact is Gold Plated, Beryllium Copper for low contact resistance
· The BNC shell is plated for tarnish resistance.
MATERIALS: BNC (Female):
Body: Brass, Nickel Plated, Dielectric: PTFE
Center Contact: Beryllium Copper, Gold Plate
Banana Plug - Body: Brass, Nickel Plated
Spring: Beryllium Copper, Nickel Plated
Insulation - ABS Molded to BNC (Female) and Banana Plug Bodies, Color: Black
RATINGS:
Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 500 VRMS Max.
Operating Temperature: +50°C (+122°F) Max.
