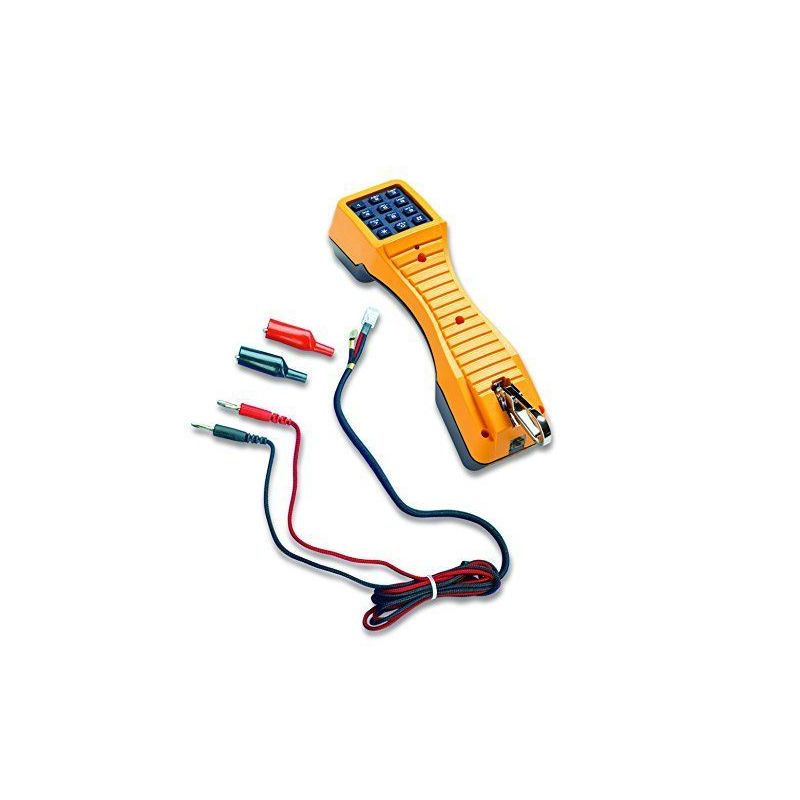

The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.
Loop Limit: 2.4 kΩmaximum at 48 VDC (nominal 15 mA minimum loop current)
DC Resistance (Talk Mode): 150 Ωtypical at 80 mA current
AC Impedance (Monitor Mode): Low impedance (Ring position) 600 Ωat 1 KHz typical
High impedance (HI Z position) 100 kΩminimum at 1 KHz
Rotary Dial Output: 10 pps .5 pps
Pulsing Rate: 60 % ± 2 %
Percent Break: 800 ms typical
Inter-digit Interval Leakage During Break: > 50 kΩ
DTMF Output: ±1 % maximum
Tone Frequency Error Level per Tone Pair: dBm maximum, - dBm minimum
High versus Low Tone Difference: 4 dB maximum
Physical Length: 8.75 in (22.2 cm)
Width: 2.375 in (6.03 cm)
Height: 3.375 in (8.57 cm)
Weight: 10.8 oz (.307 kg) maximum
