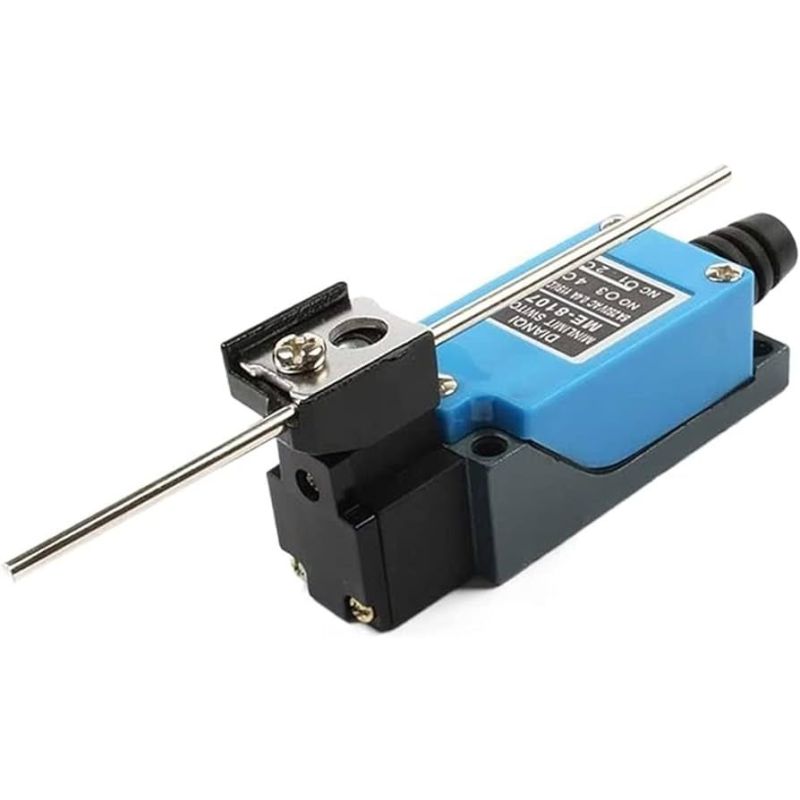

Mini Limit Switch 5A 250VAC SPDT Adjustable Rod Arm, Screw Terminal Lugs, Micro

Type: Adjustable rod arm Contact structure: Snap action Rated current.: 5A at 250 VAC; 0.4A at 125VDC Contact resistance (initial value): Under 15m Contact material: Silver cadmium oxide Insulation resistance (initial value): 100 MΩ min. (tested at 500VDC) Voltage (withstanding): Open contacts: 1000V 50/60 Hz 1 min Between chassis and contacts: 2 000V 50/60Hz 1 min Shock resistance: Free state: < 98m/s² (10 G) Full load state: < 294 m/s² (30 G) Vibration resistance: 10 - 55 Hz, 1.5 mm double amplitude Mechanical Life (overtravel OT): 10,000,000 operations min (on-off frequency of 50 operations/min) Electrical Life (resistance load): 300,000 operations min. (at full load) 5,000,000 operations min. (Electromagnetic Contactor loading) Ambient temperature: -20°C to +60°C (without frost or condensation) Humidity: Under 95% (about +5 to 20°C) Max. on-off frequency: 120 operations/min
