COPPER FOIL

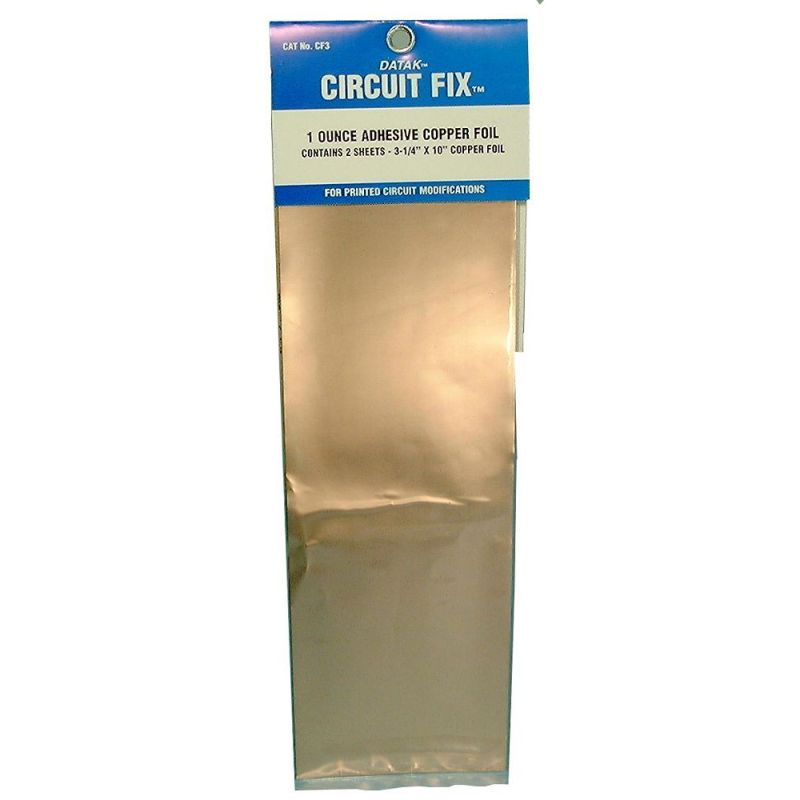

CIRCUIT-FIX TM PC BOARD TRACE MAKER - Copper Foil refill (2 sheets, 3.25” x 10”) - The CIRCUIT-FIX system has been designed to allow you to cut accurate, burrfree copper foil traces for PC boards for the purpose of adding to or repairing a circuit board. CIRCUIT-FIX is a handy system whether for prototype modifications or for circuit repairs. The system centers on a spring-loaded clamp and cutting guide that permits excellent trace cutting with a modeling knife. Both the knife and a sheet of self adhesive copper trace material are included. Also included is a sheet of (assorted sizes) pure copper self-adhesive donut pads. The cut trace and donuts are burnished to the board and then soldered to component leads. (Note: Copper donuts and foil are 1 oz. copper,.0016” thickness. The copper is passivated to retard corrosion and permit easy soldering.)
