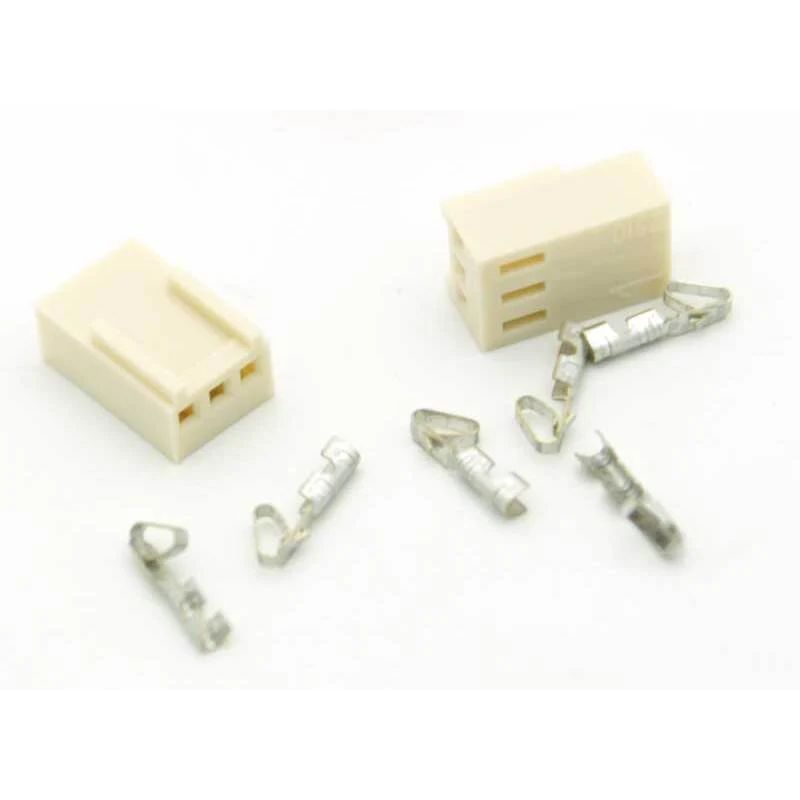

2PK LOCKING HOUSING CONNECTOR 3 POSITION .100 HEADER with pins
.100” CENTERS CRIMP TYPE LOCKING CONNECTORS
Standards
UL: E113875
TUV: E9072257
SPECIFICATIONS:
Voltage Rating:250V AC, DC
Current Rating:5 A AC, DC
Withstand Voltage:1000V AC/minute
Insulation Resistance:1000m ohm Minute
Temperature Range:-25ºC - +85ºC
Applicable PC Board
Thickness:.063” (1.6mm)
Contact Resistance:Initial Value / 10 ohms Max.
After environmental testing / 20m ohms max.
Material:Post - Brass / Tin Plate
Base - Nylon 66, UL 94V-2
