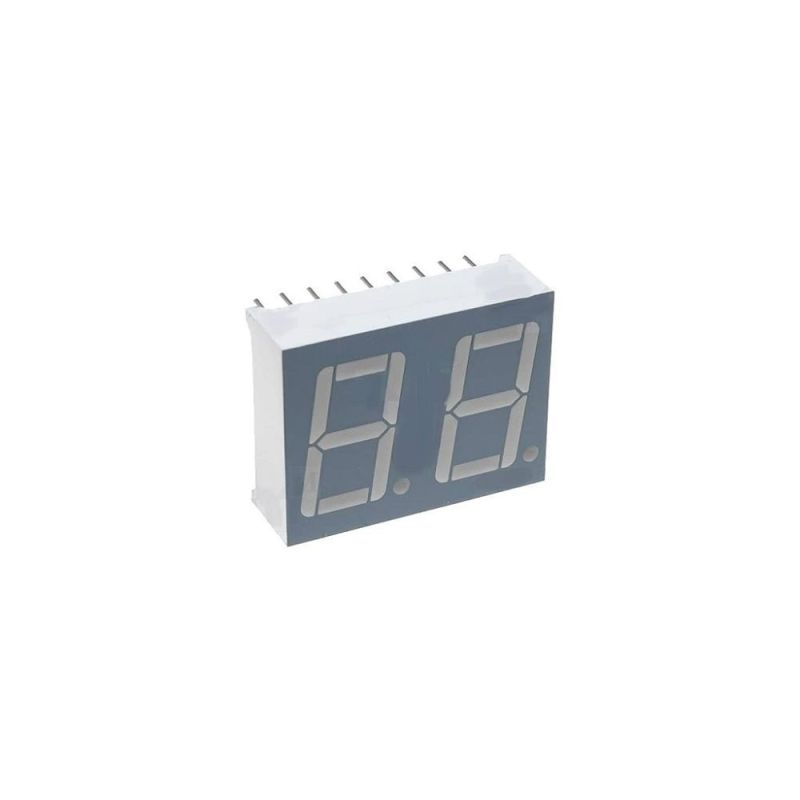

Kingbright LED Dual 2 Digit Display, 7 segment; 14mm; 0.56 inch; Red, 98-06, Common Anode
Color: High-efficiency red
Display type: 7-segment numeric display, 2-digit
Character height: 14.22mm (0.56 inches)
Common pin: Common anode
Forward voltage (Typ.): 2V
Forward current (Test): 20mA
Luminous intensity (Typ.): 8000 ucd (8 mcd) at 10mA
Wavelength (Peak): 627nm
Dimensions: 19.05mm H x 25.00mm W x 8.00mm D
Mounting style: Through-hole, 18-DIP package
Operating temperature: -40°C to +85°C
RoHS compliant: Yes
Item# DA56-11EWA EE7
$0.99
Availability:
In stock
- Buy 20 for $0.79 each and save 20%
- Buy 100 for $0.69 each and save 30%
