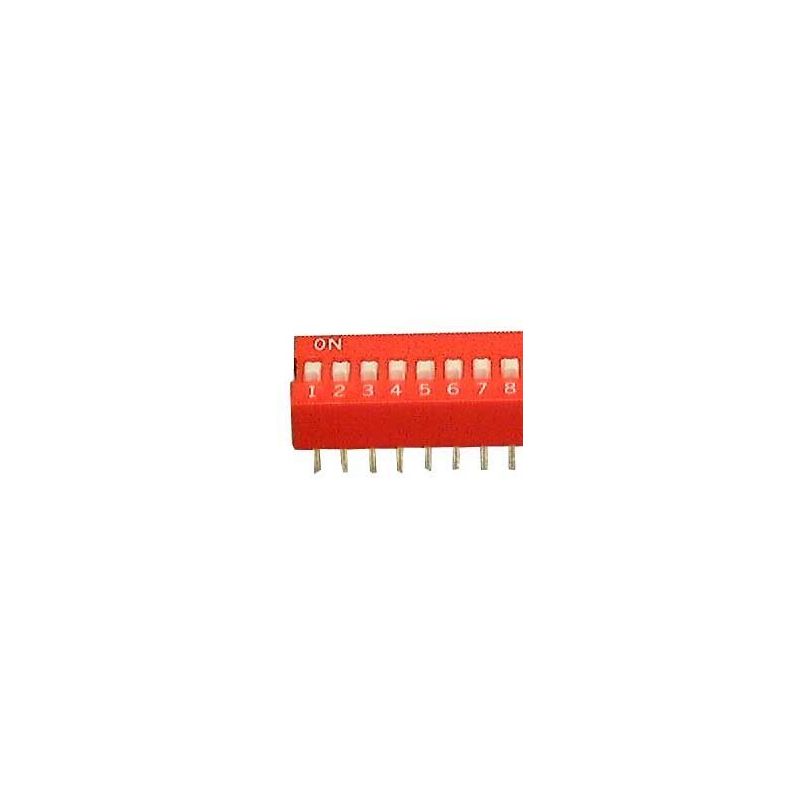

DIP SWITCH 8 Position GRAYHILL 76SB08S

SPECIFICATIONS: Contact Rating: 50V DC 100mA@ Steady Situation 24V DC 25mA@ Make or Break Initial Contact Resistance: 100mA, 30 Meg ohm @ initial 100mA, 100 Meg ohm after life test Insulation Resistance: 500V DC 100 Meg ohm (Min.) between adjacent terminals Dielectric Strength: 500V AC for 1 minute between adjacent terminals Operation Life: 5,000 make-break cycles each circuit @ test speed of 72 cycles/min. Operation Force: 500g Max. Shock: Withstand of 20g 11ms sawtooth waveform w/no contact opening > 10 ms (microseconds) Vibration: No mechanical damage or intermittent change of setting during or after test Case & Cover Material: UL 94V-O Polybutylene Telephtalate Top Seal Material: Polyester Film Potting Material: Epoxy Contact Material: Nickel, Phosphor Bronze w/Gold Plate Terminal Material: Nickel, Phosphor Bronze w/Gold Plate Terminal Type: Solder Actuator: White UL 94V-O PBT
