INFRARED MOTION DETECTOR ENTRY CHIME OR ALARM CONTROL

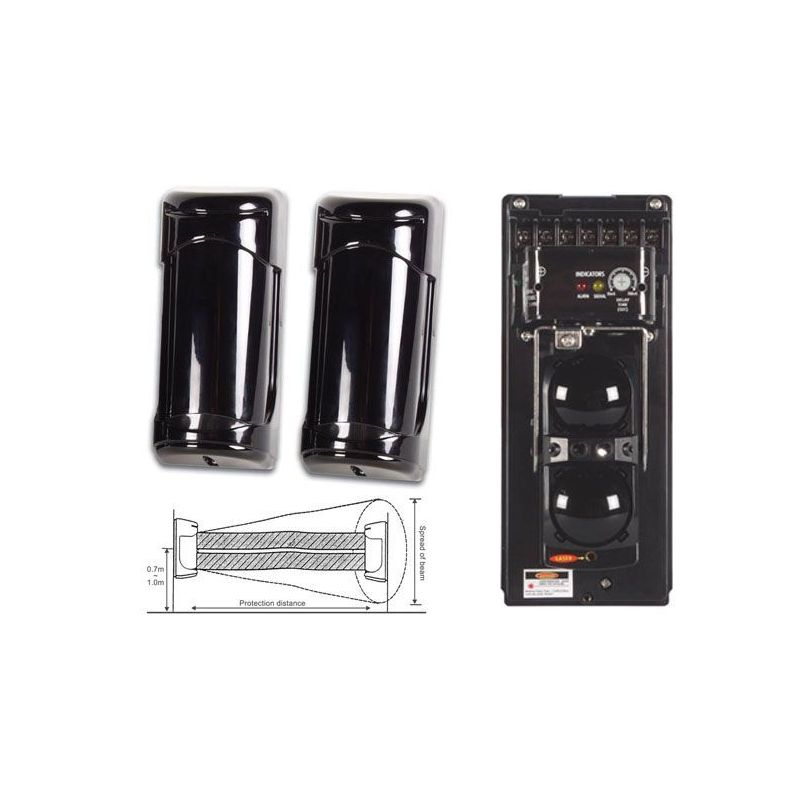

Discontinued, TWIN PHOTO BEAM DETECTORS, 60m
Features
easy and accurate adjustment thanks to the built-in laser
range:
outdoor: 30m (100ft)
indoor: 60m (200ft)
Specifications
power supply: DC 10 ~ 30V (not incl.)
detection system: simultaneous breaking of 2 IR-beams
response time: 50ms ~ 700ms (variable)
alarm output: NC/NO 1A/120VAC
tamper output: NC 1A/120VAC
LED indicators:
alarm LED (receiver): red LED on - when transmitter and receiver are not aligned or when beam is broken
signal LED (receiver): yellow LED on - when receiver's signal is weak or when beam is broken
power LED (transmitter & receiver): green LED on - indicates that device is ON
wave length: 650nm
laser output power: max. 5mW
IP rating: IP55
alignment range:
horizontal: ± 90°
vertical: ± 15°C
operating temperature: -13°F to +131°F
dimensions: 6.7" x 3.0" x 2.8"
weight: 2.4 lbs
