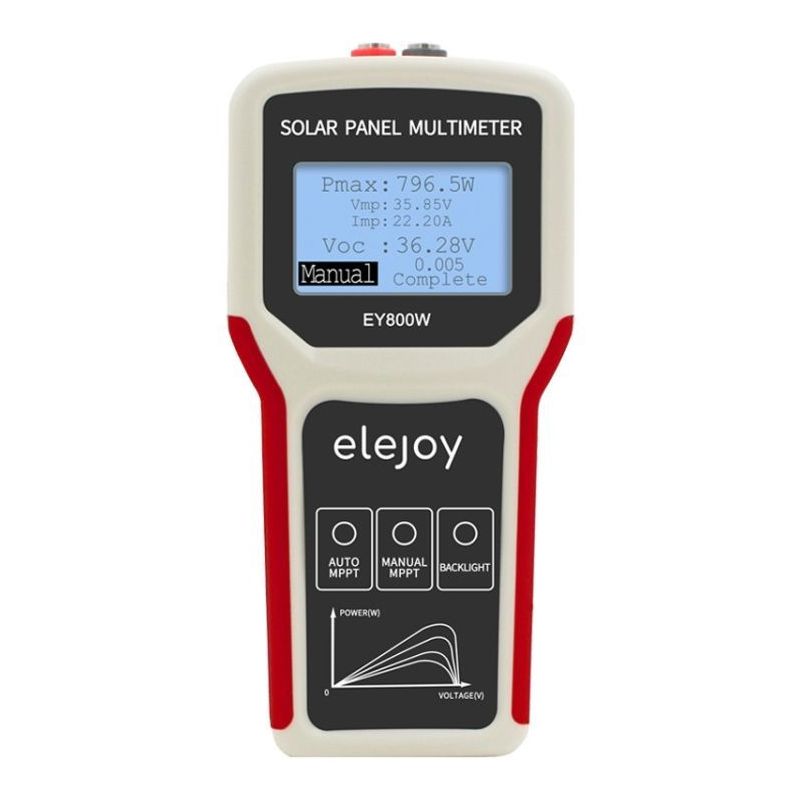

Elejoy EY800W 800W Digital Solar Panel Tester, Wattage Multimeter, Meter

Photovoltaic Panel Multimeter Solar Panel MPPT Tester Testing Power Meter.

Applications: Solar panel manufacturer Solar panel distributor Solar panel user Solar panel fans


Features:
 AUTO MPPT test
Manual MPPT test
Over-voltage, over-temperature, over-current protection
Over rated power protection
No additional power supply required
Model: EY800W
Power: 5-800W
Voltage: 12-60V
Current: 0-35A
Power supply mode: solar panel power supply
Packing: EVA package
Dimensions: 165×80×30MM
Weight: 436G

Operation Manual:
 AUTO MPPT DETECTION: When pressing the AUTO test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display. For example, when the power of photovoltaic panel is 100W, refresh once every 5S; when the power is 300W, refresh once every 15s
MANUAL MPPT DETECTION:
When pressing the manual test button, the instrument starts a scan of the maximum power point and refreshes the digital display
OPEN CIRCUIT VOLTAGE DETECTION:
When pressing the open circuit voltage button, the voltage of the photovoltaic panel will displayed in real time Attentions: Please be sure to use this product within the rated voltage and current power range Please be sure to disconnect the photovoltaic board from other equipment or loads before testing
