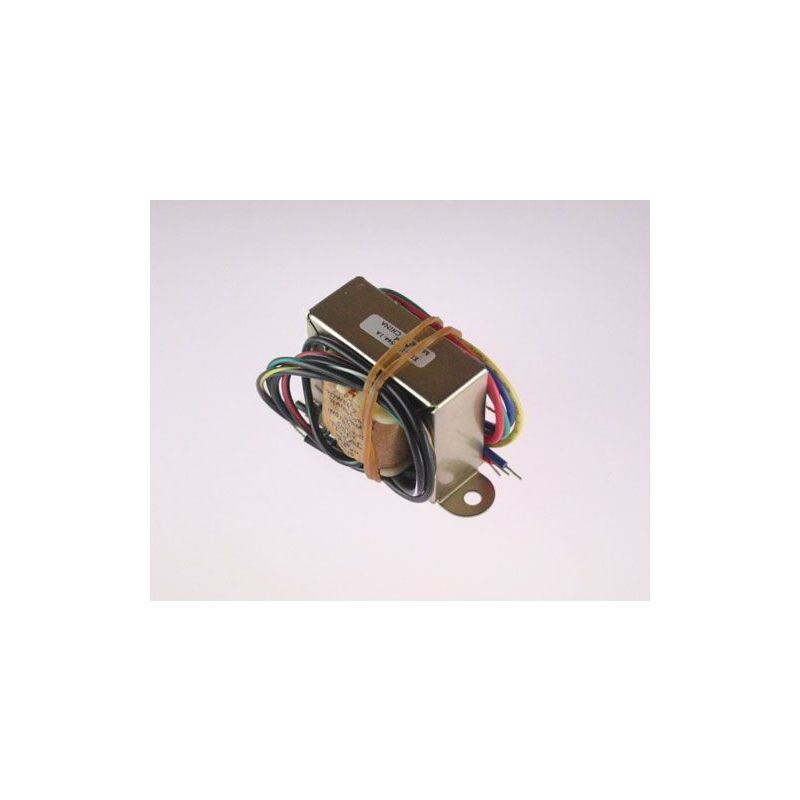

Magnetek Triad Transformer Primary Voltage 115V Secondary Voltage (AC) 6.3v CT Filament 1.2A
Electrical Specifications (@25C)
1. Maximum Power: 7.56 VA
2. Primary: 115V 60 Hz
3. Secondary: 6.3VCT @ 1.2 Amps
4. Voltage Regulation: 15 % TYP @ full load to no load
5. Temperature Rise: 35C TYP (45C MAX allowed)
Description:
The F-14X is part of a series which has a long history of reliable service in the field,
made from a proven design and constructed with UL recognized materials.
