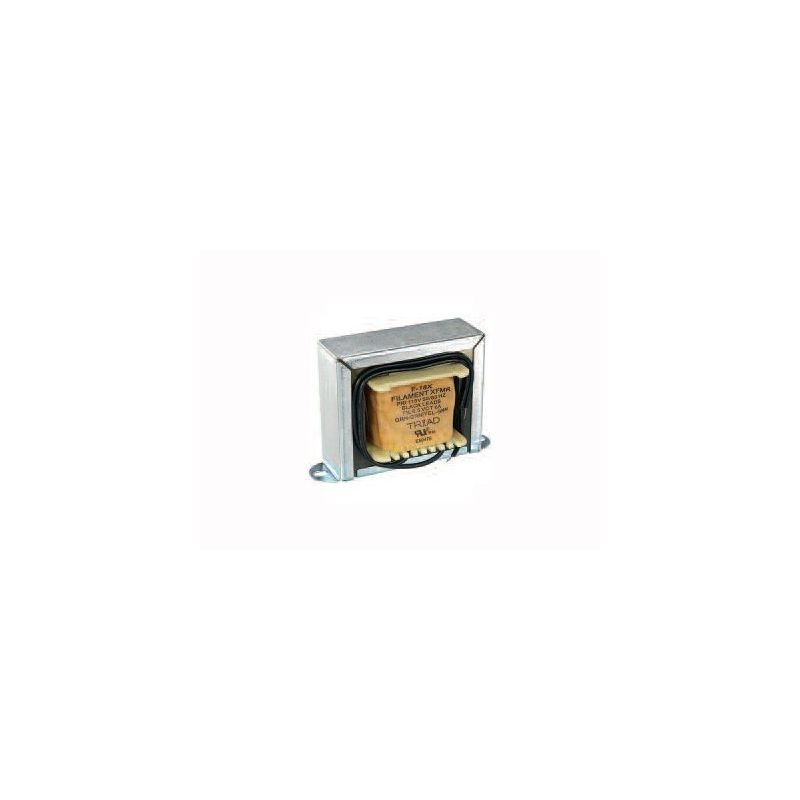

Magnetek Triad F91X Transformer Tapped for Various Output Voltageds from 6.5V to 40V, W11
Electrical Specifications (@25C)
1. Primary: 115V, 60 Hz.
2. Secondary: 0-10V, 20VCT, 40VCT @ 0.3ADC2
3. Temperature Rise: 35C TYP (45C MAX allowed)
Description:
The F-91X is a chassis mount power transformer that was designed with multiple primaries and
secondaries to give the user maximum flexibility. The F-91X is intended for use with full wave center tap
or bridge rectifiers, but may be used with voltage doubler circuits at one half of the rated current.
Secondary output possible: 40V CT 30V 20V CT 10V
38V CT 28.5V 19V CT 9.5V
34V CT 25.5V 17V CT 8.5V
32V CT 24V 16V CT 8V
30V CT 22.5V 15V CT 7.5V
28V 21V 14V CT 7V
