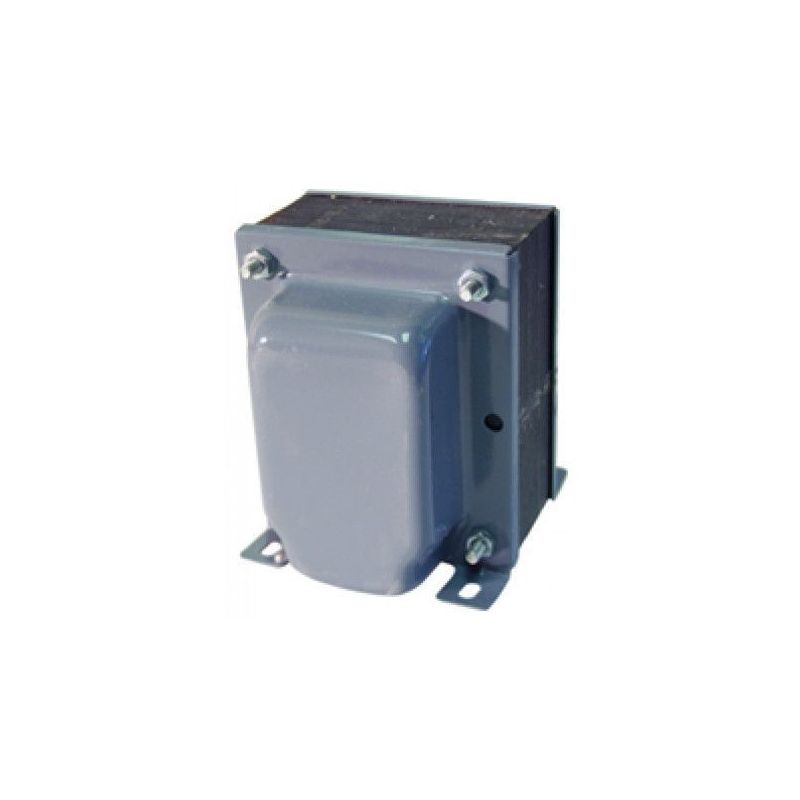

TRIAD F-92A Power Transformer, Primary 115V, Secondary 7-40V Multiple Voltage Outputs, 12-72VA
F-92A
Electrical Specifications (@25C)
1. Max. power = 12.6 – 72VA
2. Primary: 115V, 60 Hz
3. Secondary Voltage: See table below
4. DC current rating: 0.75ADC2
5. Temperature Rise: 35C TYP (45C MAX allowed)
Description:
The F-92A is a chassis mount power transformer that was designed with multiple primaries and
secondaries to give the user maximum flexibility. The F-92A is intended for use with full wave center tap
or bridge rectifiers, but may be used with voltage doubler circuits at one half of the rated current.
Construction:
Wound on a single channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.
