Ledex 174610-031 Fully enclosed cylindrical solenoid. Single magnetic coil. 30 Ohm 24VDC - 28VDC. Pull type actuator. 0.56 inch Mounting bushing diameter
GUARDIAN ELECTRIC, SOLENOID, 12VDC, A420-066642-00,
GUARDIAN ELECTRIC, SOLENOID, 12VDC, A420-067825-00,

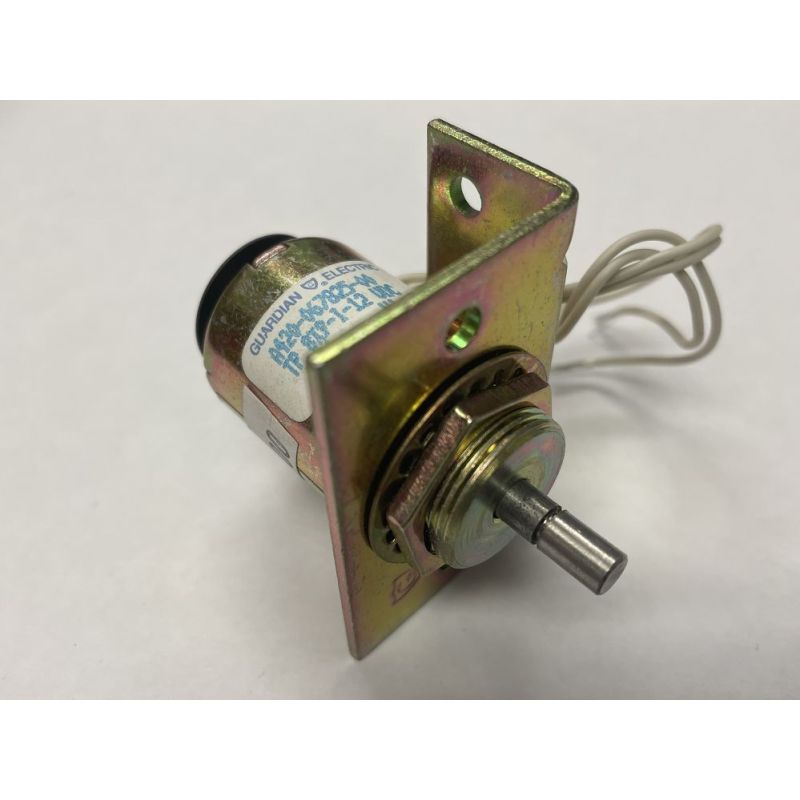

TP8x9-I-12 Inter. 12VDC 10.9 Ohms 13.9 Watts 1.1 A
Features:
High performance construction
Available return spring kit
DC applications only
UL recognized
Electrical:
Coil Voltage: 12
Coil Termination: 6.5” Wire leads
26 AWG (standard)
Duty Cycle: 100% Continuous, 25% Intermittent,
10% Intermittent, 1% Pulse
Coil treatment: Tape Wrapped
Insulation Class: Class A Rating - 105° C (221° F)
Dielectric Strength: 1500V 60 Hz
Mechanical:
Size: 1.17” (L) x 1”(D)
Plunger Diameter: 0.187”
Plunger Guide Material: Plastic
Mounting: Hex Nut
Weight: Plunger 2.2 oz, Total 3.5 oz
Life Expectancy: 1 Million Cycles
Item# TP8X9-I-12VDC
