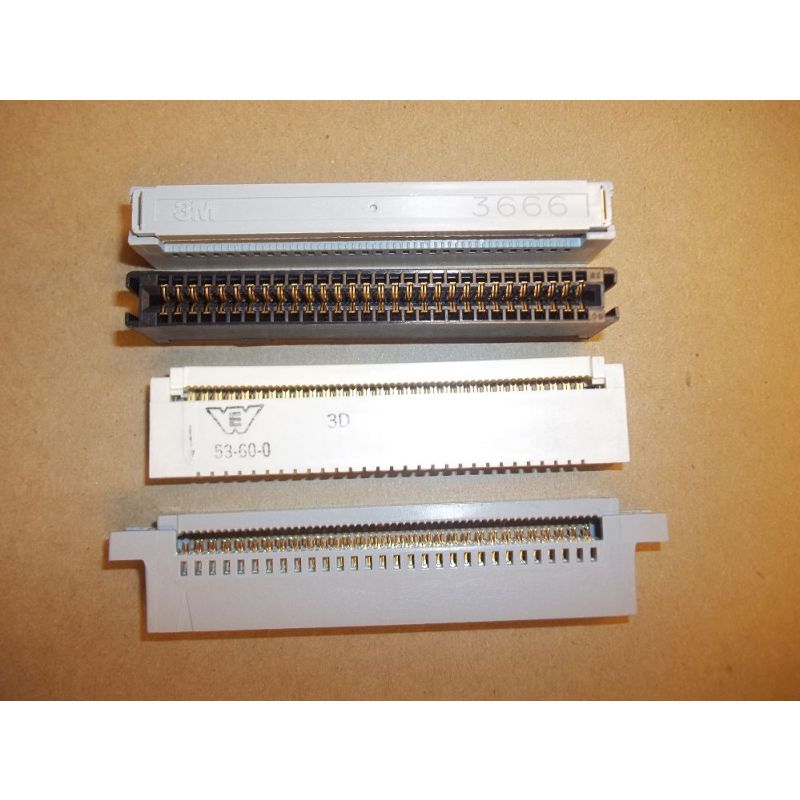

CARD EDGE IDC CONNECTOR 60 Position 53-60-0 AP 925130-60-R CE-60 3M 3666 EG60 3666-0001

INSULATION DISPLACEMENT CARD EDGE CONNECTORS FEATURES: • Contacts adjust to compensate for P.C. board thickness • Contact design assures positive connection, assures long cycle life and good self cleaning wipe on P.C. pad SPECIFICATIONS: Contact Resistance:30m ohm max. at DC 100mA Insulator Resistance:1000m ohm min. at DC 500V Current Rating:1 Amp Dielectric Withstanding Voltage: AC 500V for 1 minute Operating Temperature:-55ºC - +105ºC Contact: Phosphor Bronze Housing: PBT & 30% Glass Fiber (UL 94V-0)
