IP65 NEMA Chassis Box Sealed Lid Polycarbonate ABS with Clear Cover 4.53 X 2.56 X 2.17 In G205C
IP65 NEMA Chassis Box Sealed Lid Polycarbonate ABS with Clear Cover 8.74 X 5.75 X 2.17 In G218C
IP65 NEMA Chassis Box Sealed Lid Polycarbonate ABS with Clear Cover 2.56 X 2.3 X 1.4 In G201C

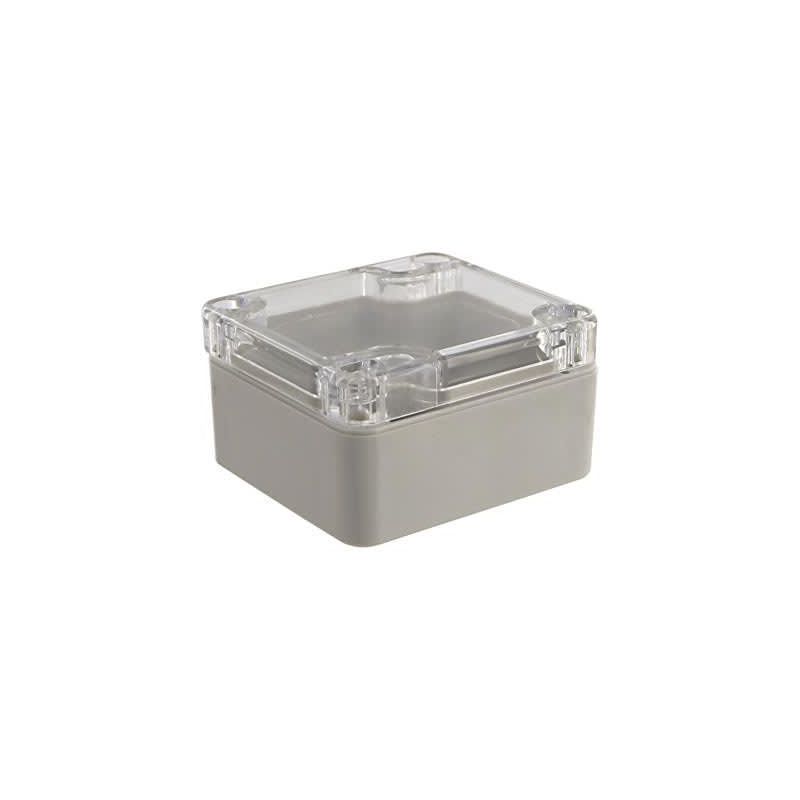

Clear, see through lid
PN Series IP65 NEMA 4X Box
UL508A & NEMA 1, 2, 3, 4, 4x 12, and 13 enclosure specifications
Designed to IP65 of IEC 529
UL Listed (E194432 Vol 1)
Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
Most models have internal guide slots for mounting PCB assemblies vertically.
Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc.
Threaded brass inserts.
Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
Gasket Material: Silicon Sponge
