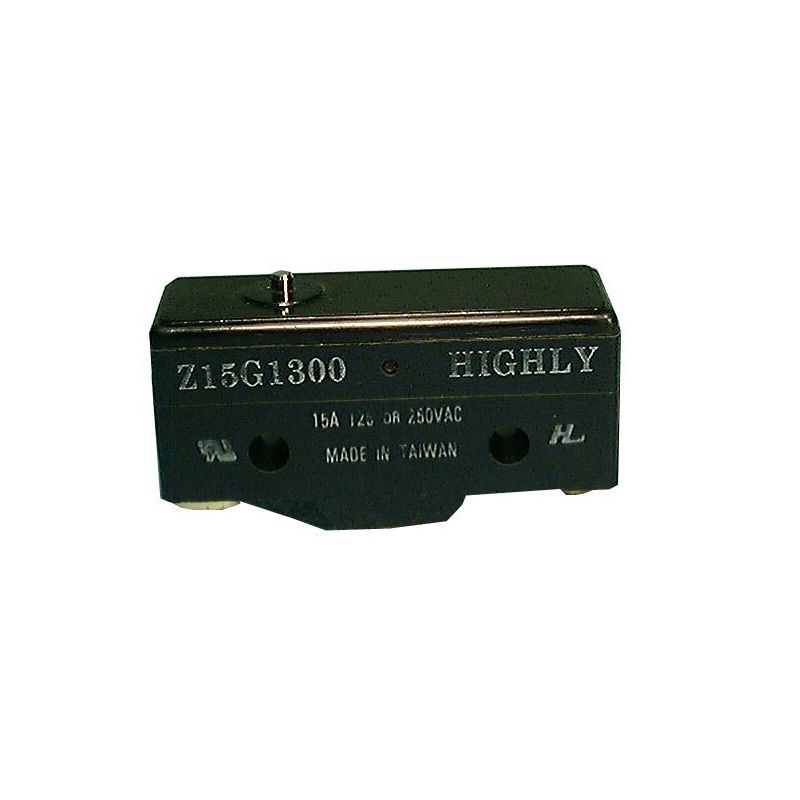

Philmore 30-1300 Heavy Duty Switch SPDT 15A 125/250V with Pin Plunger HIGHLY Z15G1300
SPECIFICATIONS:
Current Rating: 15A@ 125/250V AC
1/2A@ 125V DC, 1/4 HP @ 250V DC
1/8 HP @ 125V AC, 1/4 HP @ 250V
AC
Initial Contact Resistance: 15 Meg ohm (Max.)
Insulation Resistance: 500V DC 1000 Meg ohm (Min.)
Dielectric Strength: 1000V AC for 1 Minute
Contact Material: Silver
Terminal Material: Brass - Silver Plate
Terminal Type: Screw
SPECIFICATIONS:
OF Max.: 250-350g
RF Min.: 114g
PT Max.: 0.4mm
OT Min.: 0.13mm
MD Max.: 0.05mm
OP: 5.9 + 0.4mm
Actuator: Pin Plunger
Item# 30-1300B
$11.25
Availability:
In stock
- Buy 25 for $6.25 each and save 44%
- Buy 100 for $5.36 each and save 52%
