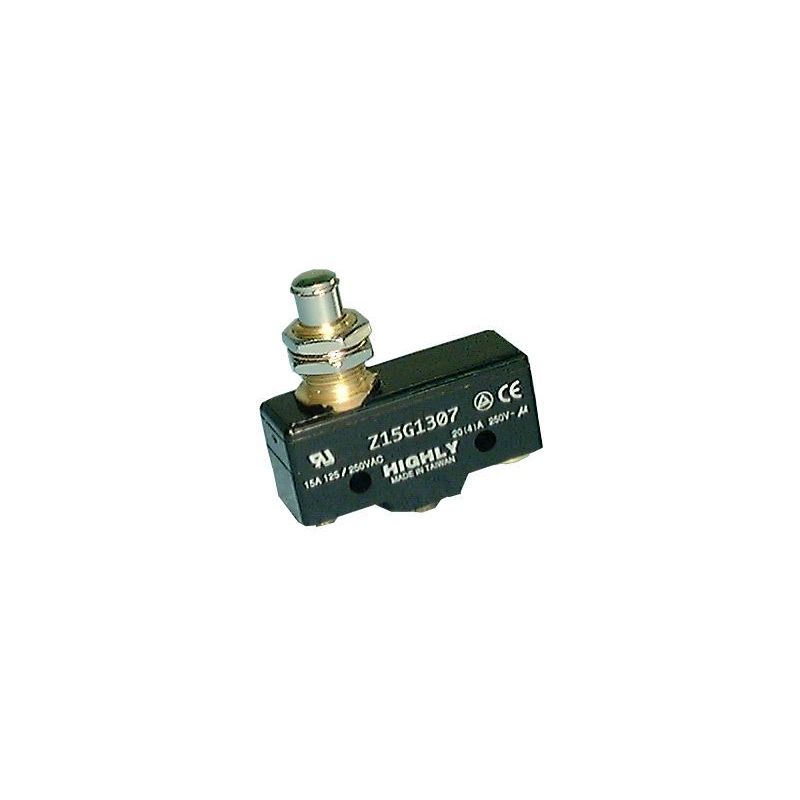

Philmore 30-1307 Heavy Duty Switch SPDT 15A 125/250V with Plunger HIGHLY Z15G1307
SPECIFICATIONS:
Current Rating: 15A@ 125/250V AC
1/2A@ 125V DC, 1/4 HP @ 250V DC
1/8 HP @ 125V AC, 1/4 HP @ 250V AC
Initial Contact Resistance: 15 Meg ohm (Max.)
Insulation Resistance: 500V DC 1000 Meg ohm (Min.)
Dielectric Strength: 1000V AC for 1 Minute
Contact Material: Silver
Terminal Material: Brass - Silver Plate
Terminal Type: Screw
SPECIFICATIONS:
OF Max.: 250-350g
RF Min.: 114g
PT Max.: 0.4mm
OT Min.: 5.5mm
MD Max.: 0.05mm
OP: 21.8 +/- 0.8mm
Actuator: Plunger
Item# 30-1307B
$17.98
Availability:
In stock
- Buy 25 for $8.00 each and save 56%
- Buy 100 for $6.86 each and save 62%
