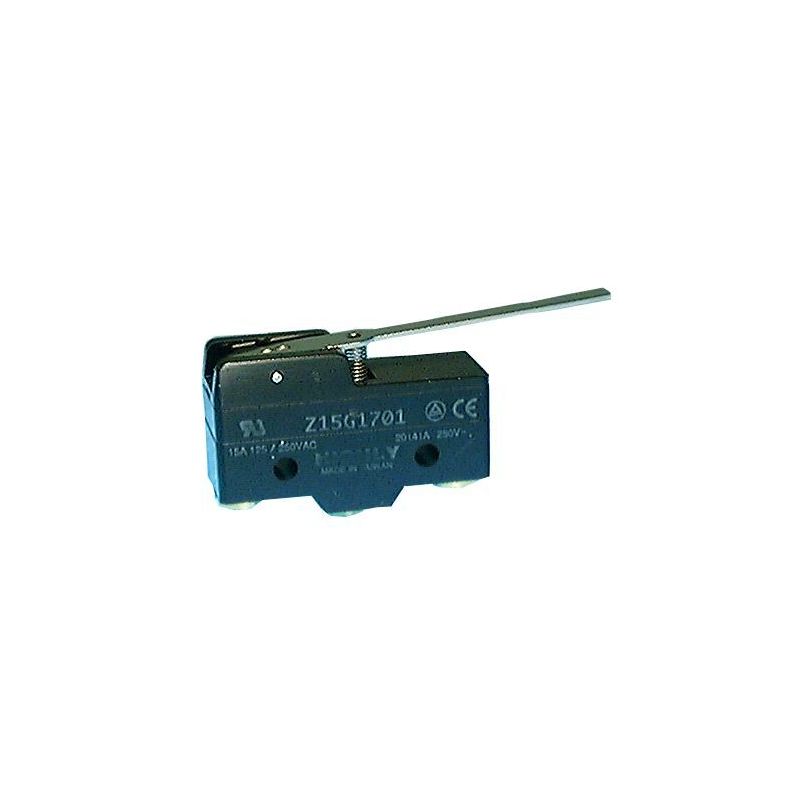

Philmore 30-1701 Heavy Duty Switch SPDT 15A 125 250V with Long Lever UNIMAX HBS2KGS HIGHLY Z15G1701
SPECIFICATIONS:
Current Rating: 15A@ 125/250V AC
1/2A@ 125V DC, 1/4 HP @ 250V DC
1/8 HP @ 125V AC, 1/4 HP @ 250V AC
Initial Contact Resistance: 15 Meg ohm (Max.)
Insulation Resistance: 500V DC 1000 Meg ohm (Min.)
Dielectric Strength: 1000V AC for 1 Minute
Contact Material: Silver
Terminal Material: Brass - Silver Plate
Terminal Type: Screw
SPECIFICATIONS:
OF Max.: 70g
RF Min.: 14g
PT Max.: 10mm
OT Min.: 5.6mm
MD Max.: 1.27mm
FP Max.: 28.2mm
OP: 19 +/- 0.8mm
Actuator: Long Lever
Item# 30-1701B
$13.08
Availability:
In stock
- Buy 25 for $6.87 each and save 47%
- Buy 100 for $5.89 each and save 55%
