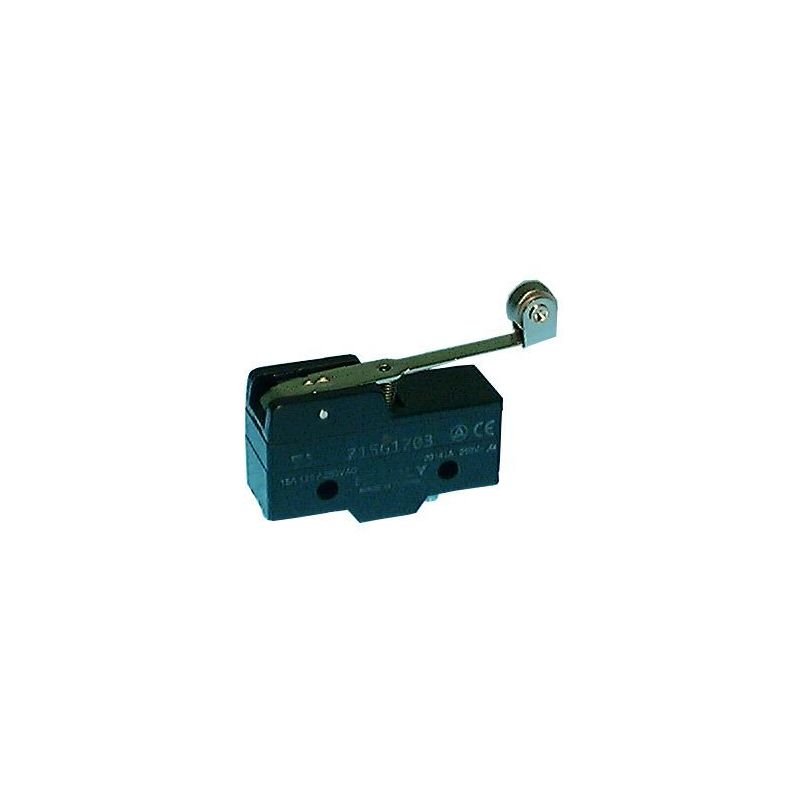

Philmore 30-1703 HEAVY DUTY Switch SPDT 15A 125 250V with Long Roller Lever HIGHLY Z15G1703 HLKJ BZ-2RM2 CN0102
SPECIFICATIONS:
Current Rating: 15A@ 125/250V AC
1/2A@ 125V DC, 1/4 HP @ 250V DC
1/8 HP @ 125V AC, 1/4 HP @ 250V AC
Initial Contact Resistance: 15 Meg ohm (Max.)
Insulation Resistance: 500V DC 1000 Meg ohm (Min.)
Dielectric Strength: 1000V AC for 1 Minute
Contact Material: Silver
Terminal Material: Brass - Silver Plate
Terminal Type: Screw
SPECIFICATIONS:
OF Max.: 100g
RF Min.: 22g
PT Max.: 7.1mm
OT Min.: 4mm
MD Max.: 1.02mm
FP Max.: 36.5mm
OP: 30.2 + 0.8mm
Actuator: Long Roller Lever
Item# 30-1703B
$40.00
Availability:
In stock
- Buy 25 for $7.13 each and save 82%
- Buy 100 for $6.12 each and save 85%
