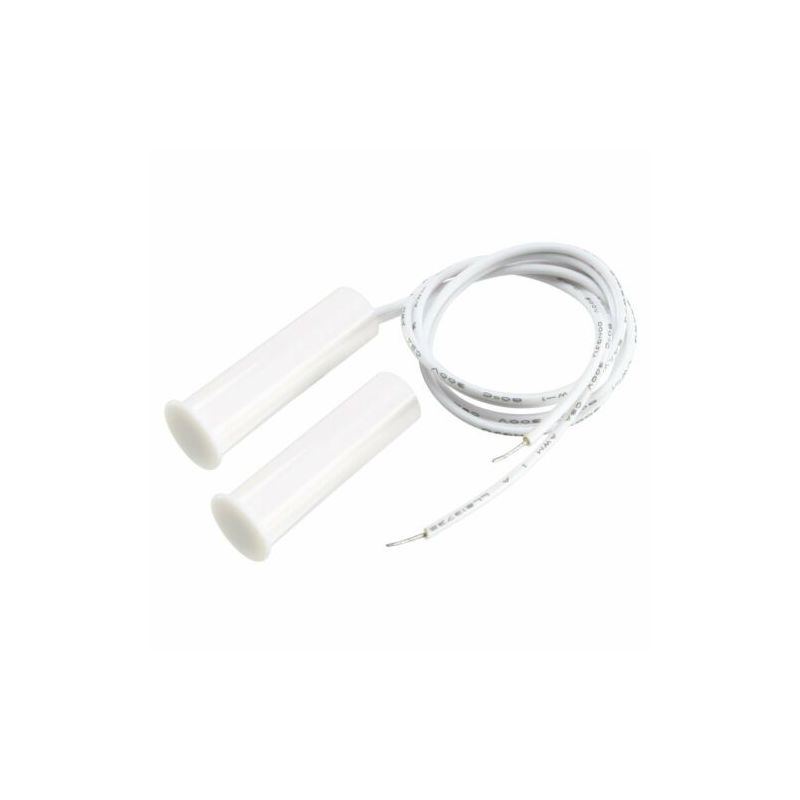

Philmore 30-17059 Door Jam Reed Switch SPST Normally OPEN SRS-SR-3013W
CIRCUIT: SPST Normally Closed reed switch.
NOTES: Normally closed when magnet
is within 1/2” or closer.
SPST N.C. Door Jam Reed Switch.
Designed for use with alarm systems. The switch
will remain closed as long as the magnet is within 1/2”
of the switch. Magnet is mounted in the door. Both
magnet and switch will fit tightly in 3/8” holes in wood
or aluminum door jams and doors (may not work at all
with steel doors). Fits flush with surface; glue in place
with adhesive.
Pigtail lead wires are 11” long. Switch case
is high impact plastic. Contacts (reed switch) rated at
0.2 amps at 12 VDC. Life approximately two million
cycles. Alarm Push in Door Magnetic Reed Switch
