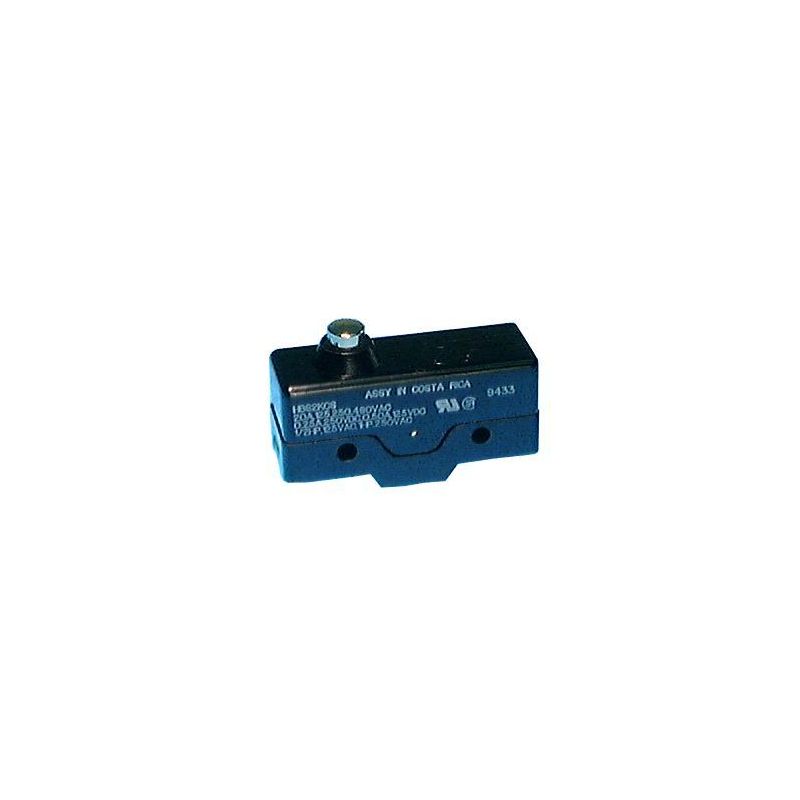

Philmore 30-18130 HEAVY DUTY with Button Actuator Switch SPDT 15A 125-250V Screw HIGHLY Z15G1306 HBS2KCS
SPECIFICATIONS:
Current Rating: 15A - 125/250V AC
1/2A@ 125V DC
Initial Contact Resistance: 15 Meg ohm (Max.)
Insulation Resistance: 100 Meg ohm (Min.) at 500VDC
Dielectric Strength: 1000V AC 50/60 Hz for 1 Minute
Contact Material: Silver
Terminal Material: Brass - Silver Plate
Terminal Type: Screw
SPECIFICATIONS:
OF Max.: 250-350g
RF Min.: 114g
PT Max.: 0.4mm
OT Min.: 1.6mm
MD Max.: 0.05mm
OP: 21.5 + 0.5mm
Item# 30-18130B
$11.38
Availability:
In stock
- Buy 25 for $7.18 each and save 37%
- Buy 100 for $6.16 each and save 46%
