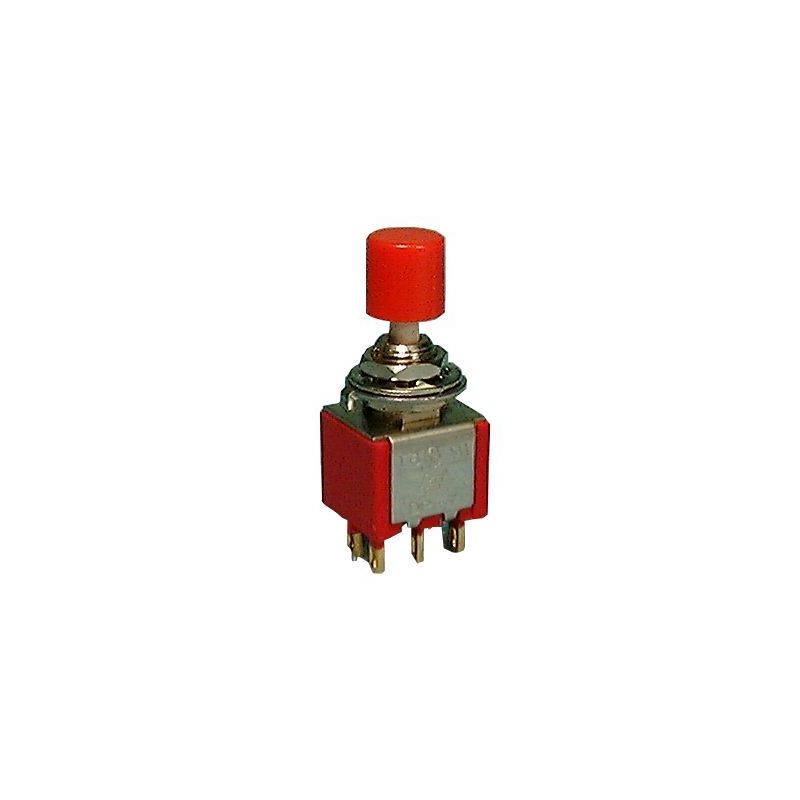

Philmore 30-2750 Snap Action PUSH BUTTON Switch DPDT 1A ON-ON Q27 C&K 8221
SPECIFICATIONS:
Current Rating: 1A@ 125V AC, 38V DC
Initial Contact Resistance: 10 Meg ohm (Max.), Initial @2-4V DC
Insulation Resistance: 1000 Meg ohm (Min.)
Dielectric Strength: 1000V RMS @ Sea Level
Contact Material: Brass w/Gold Plate over Nickel Plate
Terminal Material: Brass - Nickel Plate
Terminal Type: Solder
Action: Snap Action Momentary
Terminal Connection 1-3, 4-6 - 1-2, 4-5
Mounting Hole: 0.250”
Supplied with red cap.
Item# 30-2750B
$6.28
Availability:
In stock
- Buy 25 for $4.33 each and save 31%
- Buy 100 for $3.71 each and save 41%
