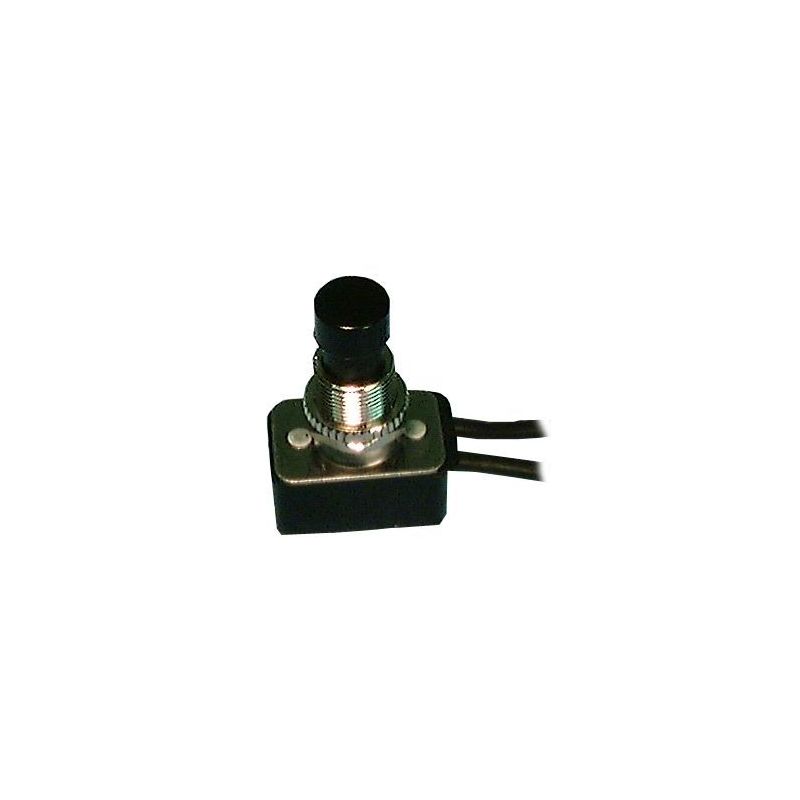

Philmore 30-354 Utility AC DC Push Button Switch SPST 8A ON-OFF Black NECON
SPECIFICATIONS:
Current Rating: 8A@ 125V AC, 4A@ 250V AC
10A@ 125V AC, 1/3 HP 125V AC
Initial Contact Resistance: 10 Meg ohm (Max.)
Insulation Resistance: 100 Meg ohm (Min.)
Dielectric Strength: 1000V AC
Contact Material: Brass - Nickel Plate
Terminal Material: Brass - Nickel Plate
Terminal Type: 6” 18 AWG Wire Lead
Actuator: Black Plastic
Mounting Hole: 0.500”
NOTE: Switches must be installed with a hex nut behind
panel to prevent damage during installation.
