SPECIFICATIONS:
ELECTRICAL RATINGS :
12A 125-250V AC 85C UL E45221
1/2HP 125V AC 1HP 250V AC UL E45221
12A 125-250V AC CSA LR10990
12 (2)A 250V AC T125 VDE 10032
6 (6)A 250V AC T105 5E4 VDE 10032
(50K Operations)
10A 28V DC No Approvals
MATERIALS:
Body: Nylon 6.6
Rocker (Opaque): Nylon 6.6
Rocker (Lighted): Polycarbonate
Contact Gap: 3mm (.118)
Contact Material: Silver Alloy

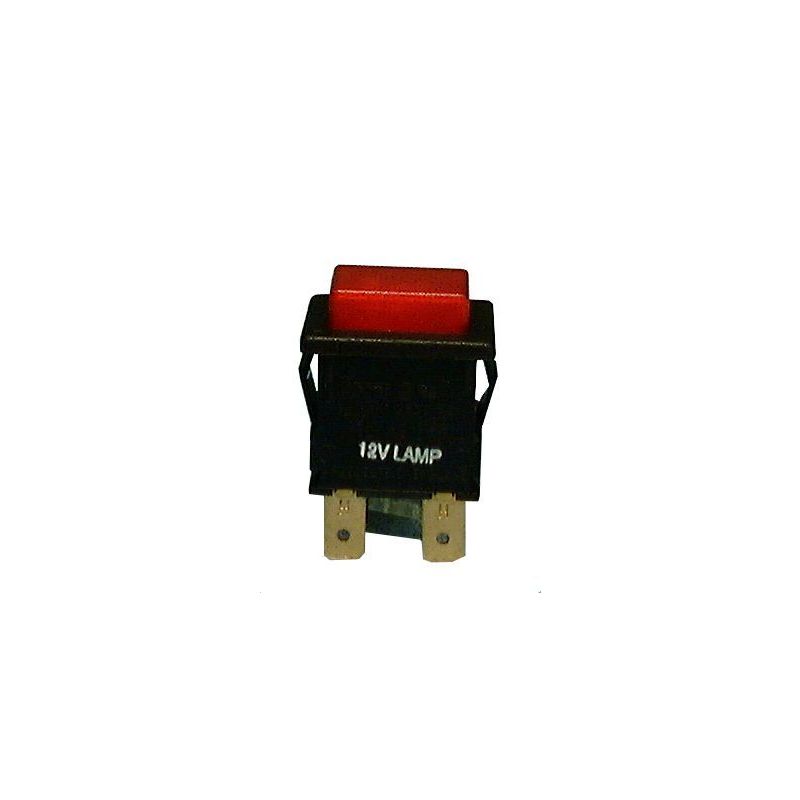

Actuator: Red Lens Button
NOTE: User Note: The light bulb incorporated in this switch must
be connected to 12 volts AC or DC and NOT to 125 volts. The 125 volt
rating applies to switch contacts, NOT to the light.
