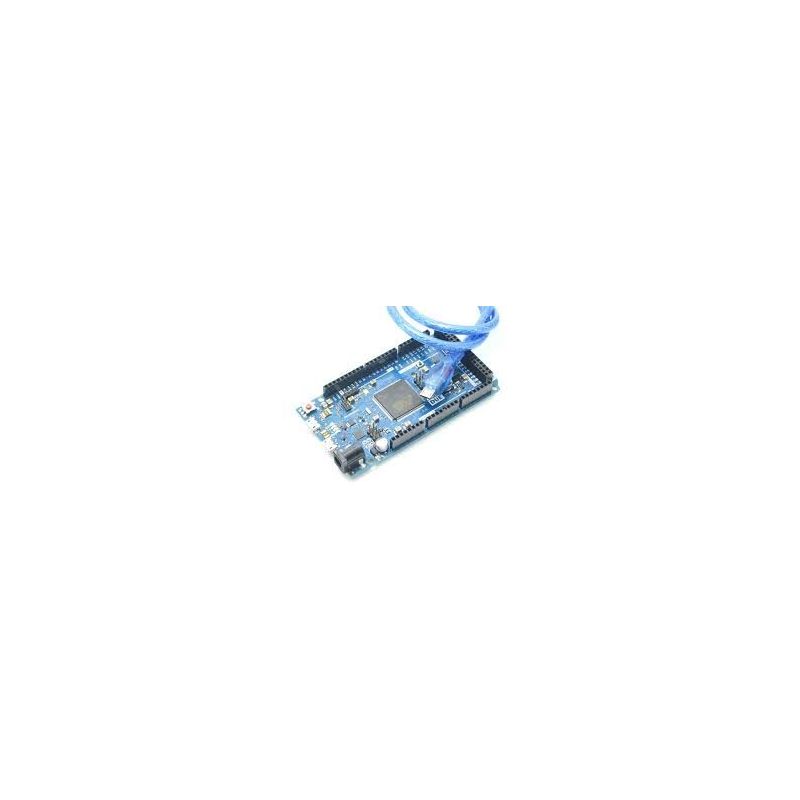

ARDUINO DUE equivalent SAM3x8E 32-bit ARM Cortex-M3 DUE 2012 R3 Board Control Module, Cable included, Prototyping Platform

Color Blue + black Material PCB Features 32-bit core allows operations on 4 bytes wide data within a single CPU clock; CPU Clock at 84Mhz; 96KB of SRAM; 512KB of Flash memory for code; DMA controller can relieve the CPU from doing memory intensive tasks Specification Due Microcontroller Board is based on the 32-bit processor Atmel SAM3X8E ARM Cortex-M3 MCU, and improves all the standard Arduino functionalities and adds many new features; The Due offers 54 digital input / output pins, 12 analog inputs, 4 UARTs, two DAC outputs, an 84MHz crystal oscillator, two IIC, USB OTG connection, a power jack, an ICSP header, an SPI header, a reset button and erase button. The maximum voltage that the I/O pins can provide or tolerate is 3.3V. The board has two micro USB connectors - one for debugging purposes and a second one capable of acting as a USB host, allowing external USB peripherals such as mouse, keyboards, smartphones, etc. to be connected to the Arduino Due.; The board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. Application Arduino development and learning Packing List 1 x Due board Dimensions: 4.06 in x 2.17 in x 0.63 in (10.3 cm x 5.5 cm x 1.6 cm) Weight: 1.06 oz (30 g)
