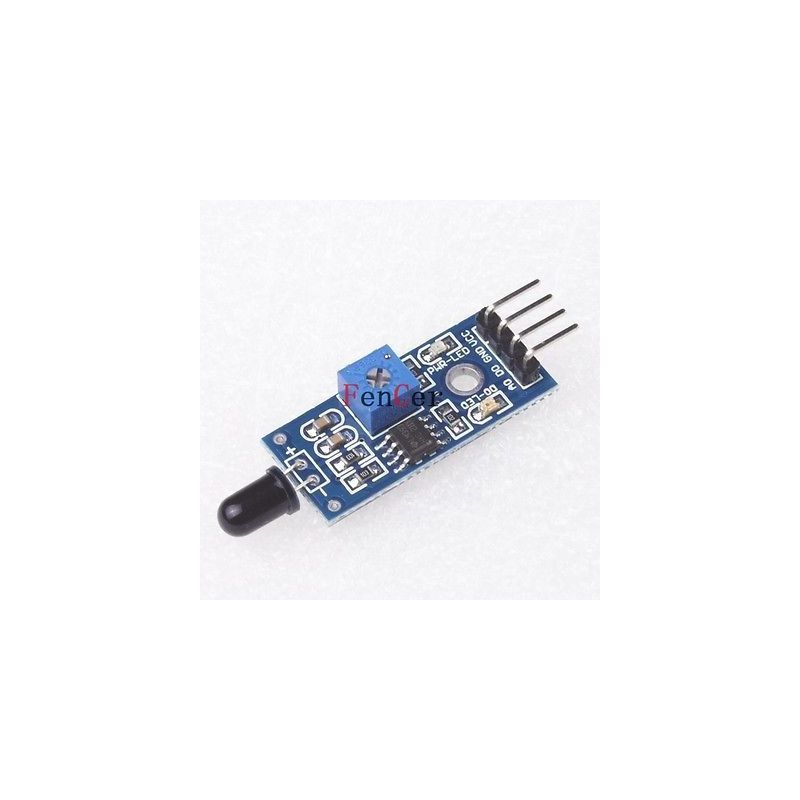

Color: Blue + black
- Material: PCB + brass
- Detects fire or wavelength light source between 760~1100 nm
- Detecting angle: Approx. 60 degree
- Adjustable sensitivity
- Operating voltage: 3.3V~5V
- Output: a analog voltage output / b digital switch outputs (0 and 1)
- With fixed bolt hole for easy installation
- With stable LM393 chipset in comparator
- VCC 3.3V~5V external power supply
- GND external GND
- DO digital output interface (0 and 1)
- AO analog output interface
- Packing list:
- 1 x Module
Dimensions: 1.65 in x 0.59 in x 0.31 in (4.2 cm x 1.5 cm x 0.8 cm)
Weight: 0.18 oz (5 g)
