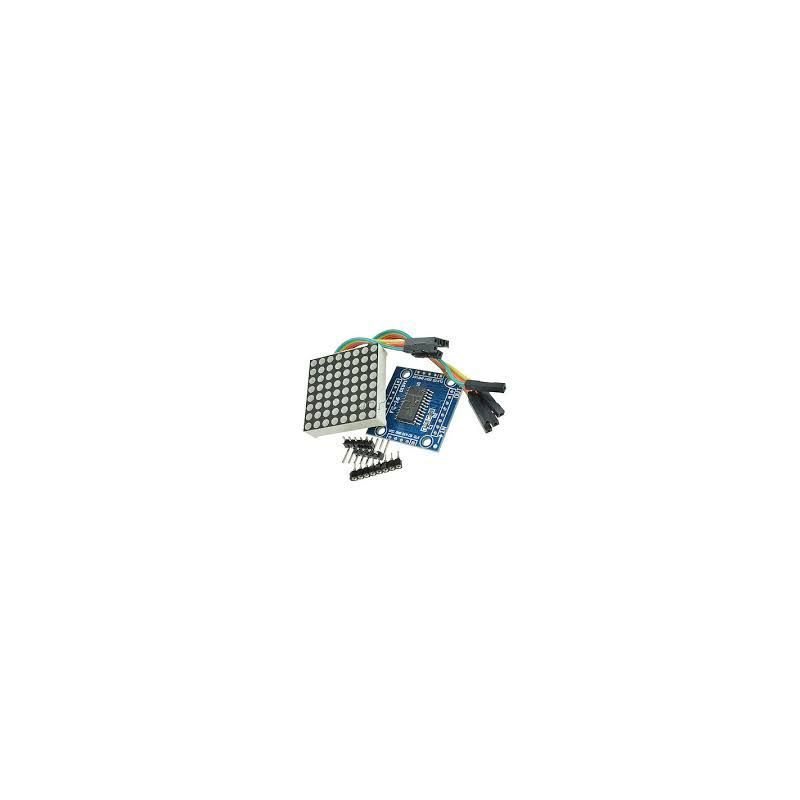

ARDUINO Accessory, Dot Matrix LED Display Module. MAX7219

Single module can drive an 8 * 8 dot matrix common cathode Module Operating voltage: 5V Module dimensions: length 3.2 cm X 3.2 cm wide X 1.3 cm high Holes with four screws, diameter 3mm Modules with input and output interfaces, support for cascading multiple modules Wiring instructions: On the left block to an input port, an output port on the right When the control of a single module, simply enter the port received a CPU When more than 3 modules cascaded output input termination CPU, the input output termination module of the first two modules of the first one, the first two modules of the termination input terminal of the three modules, and so on To 51 single example: VCC → 5V GND → GND DIN → P20 CS → P21 CLK → P22 Quantity:1pc
