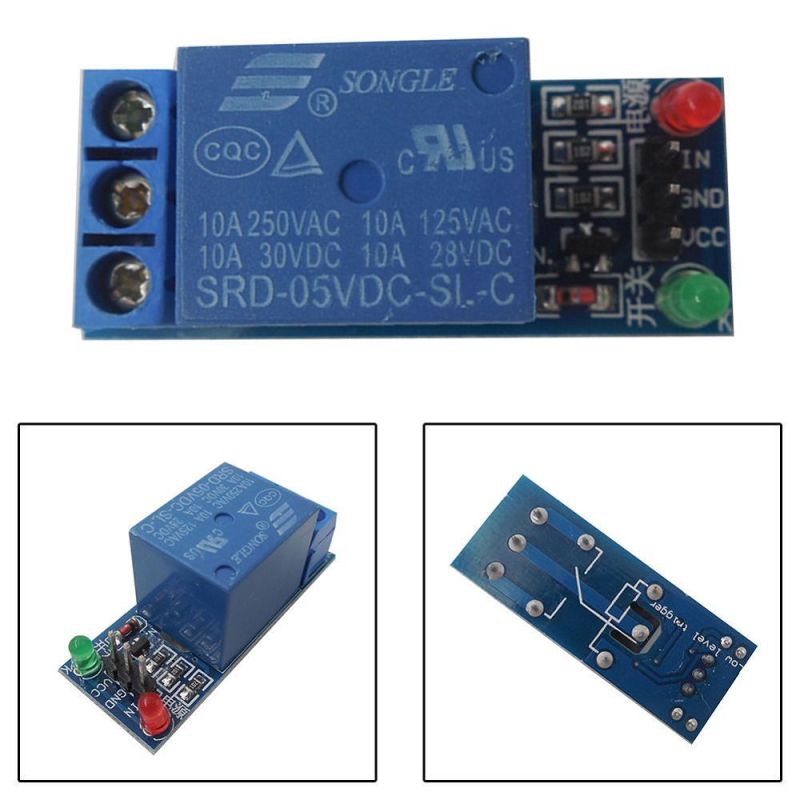

Features:
With isolation tap in control voltage input and load terminal.
With power and relay indication light, lights when connected and off when disconnected.
Use as a microcontroller development board module and also as a home appliance control.
Controls DC or AC signal up to 220V AC load.
Open and close contact.
Specification:
1. VCC: Power interface ,5V
2. GND: Ground
3. IN: Control interface . Drive Current at least 4mA
4. COM: Control circuit ground, Connect to GND
5. Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''
6. Weight: approx. 12g
