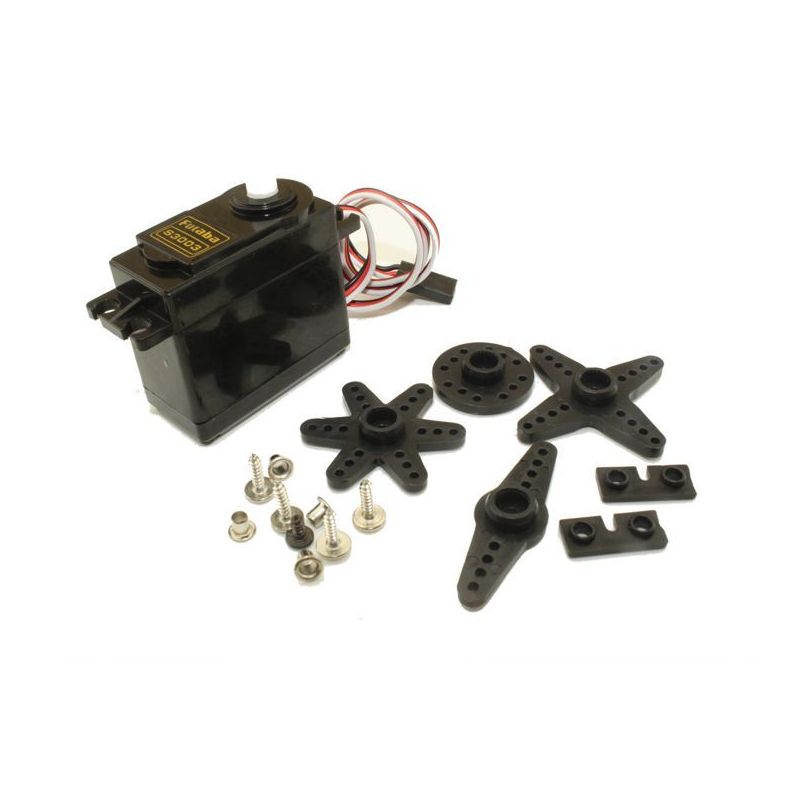

ARDUINO Accessory, Futaba S3003 Servo Motor for 6CH, RC, Helecopter, Robotic Projects
Detailed Specifications
Control System: +Pulse Width Control 1520usec
Neutral Current Drain (4.8V): 7.2mA/idle
Required Pulse: 3-5 Volt Peak to Peak Square
Wave Current Drain (6.0V): 8mA/idle
Operating Voltage: 4.8-6.0 Volts Direction: Counter Clockwise/Pulse Traveling 1520-
1900usec
Operating Temperature
Range: -20 to +60 Degree C Motor Type: 3 Pole Ferrite
Operating Speed (4.8V): 0.23sec/60 degrees at no load Potentiometer Drive: Indirect Drive
Operating Speed (6.0V): 0.19sec/60 degrees at no load Bearing Type: Plastic Bearing
Stall Torque (4.8V): 44 oz/in. (3.2kg.cm) Gear Type: All Nylon Gears
Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm) Connector Wire
Length: 12"
Operating Angle: 45 Deg. one side pulse traveling
400usec Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
360 Modifiable: Yes Weight: 1.3oz. (37.2g)
Item# Propart S3003
