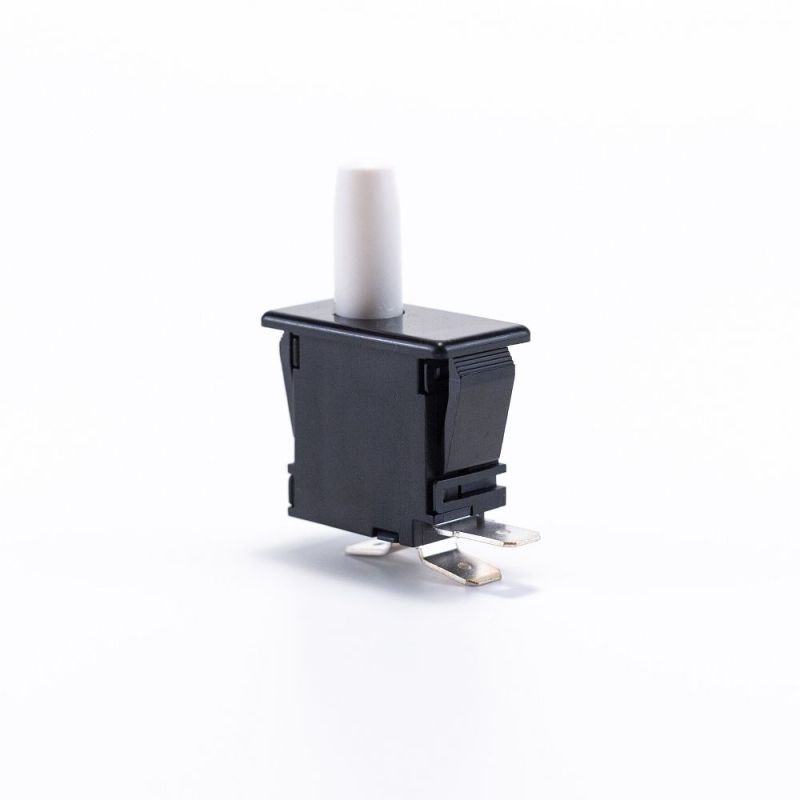

PUSH BUTTON SWITCH, SNAP-IN .5 inch X 1 inch Lamb PP1 Cutoff Switch 16A 125V, MOMENTARY SPDT ON - OFF, 3/16 QIUCK SLIDE SPADE TERMINALS, Funrnice Safty Switch

The Lamb (E-Switch) PP1 series is a high-power, snap-in mount pushbutton switch designed to operate as a heavy-duty door interlock or detector switch. It features SPDT (Single Pole, Double Throw) momentary action, allowing it to act as a safety disconnect when access panels or doors are opened.

Core Specifications
Electrical Rating: Up to 16A @ 125VAC, 12A @ 250VAC, and 1HP @ 125/250VAC
Circuit Function: SPDT; On-(On)
Activation Type: Momentary (push-to-make)
Electrical Life: 6,000 cycles
Operating Temperature: 0°C to 85°C (T85)
Mounting: Snap-in panel mount (standard 28.2mm x 13.3mm cutout)
Terminations: 3/16" (4.8mm) quick connect
