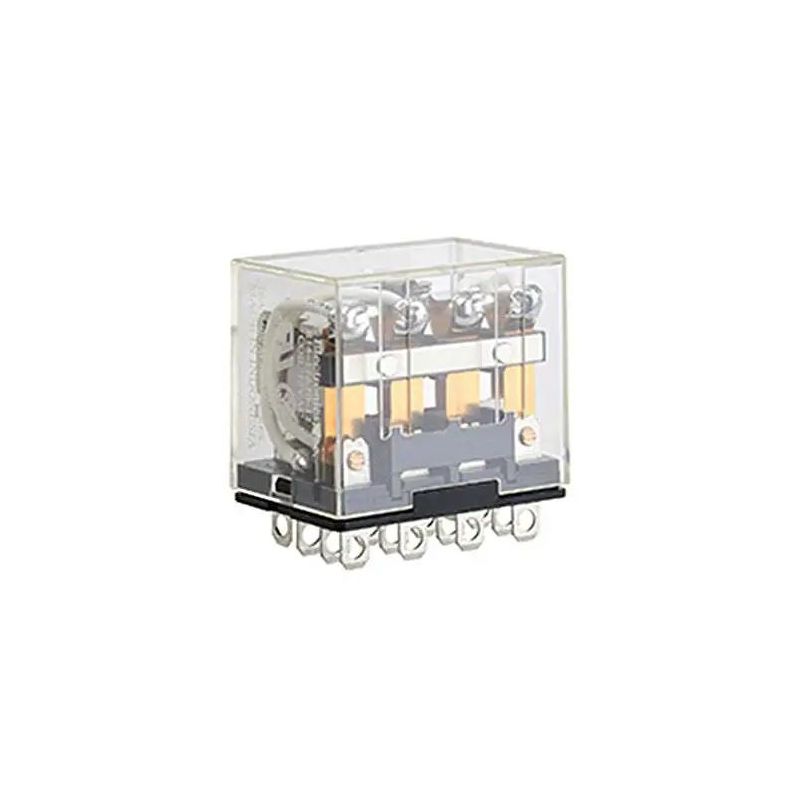

RELAY-120VAC 10AMP 4PDT GEN PURPOSE

R14 Series Features Slightly Larger than One Cubic Inch SPDT, DPDT, 3PDT, and 4PDT See−Thru Plastic Cover Plug−In or Solder Terminal, will also accept .187” (4.75mm) Faston Terminals PC Board Mount (P−suffix) Flange Mount Version (F−suffix) Indicator Lamp Types (N−suffix) High Reliability, 50 Million Operations Electrical Specifications Contact Ratings: 15 Amp @ 150 VAC/30 VDC, 10 Amp @ 240 VAC 1/3 HP @ 120 VAC, 1/2 HP @ 240 VAC 10 Amp @ 240/30 VDC Resistive, 1/3 HP @ 120 VAC 1/2 HP @ 240 VAC Contact Material: Silver cadmium oxide Contact Resistance: 100 milliohms max. (at 6 VDC, 1 Amp) Coil Coil Voltages: See Chart Pick−up Voltage: 80% of nominal or less for AC 75% of nominal or less for DC Resistance: See chart Min Sensitivity: 0.5 Watts DC .75 volt Amps (60Hz) Duty Cycle: Continuous Operational Characteristics Timing Value . . . . . . Operate Time: 25 mS or less Release Time: 25 mS or less Insulation Characteristics Dielectric Strength Contact To Coil: 1500 VRMS (50/60 Hz) Across Open Contacts: 1000 VRMS (50/60 Hz) Coil To Frame: 1500 VRMS (50/60 Hz) Insulation Resistance: 100 megohms Min. @ 500 VDC Environmental Characteristics Operating: −30 C to +55 C Weight Std: 11/2 ozs (45 grams)—approx. MOUNTING SOCKETS STYLES DESCRIPTION NTE TYPE NO. SURFACE MOUNT 8−PIN BLADE R95−110 PANEL MOUNT 8−PIN BLADE R95−111 11−PIN BLADE RLY9154 14−PIN BLADE RLY9157 PC MOUNT 8−PIN BLADE R95−120 11−PIN BLADE RLY9155 14−PIN BLADE RLY9158 DIN RAIL MOUNT 8−PIN BLADE R95−121 11−PIN BLADE RLY9156 14−PIN BLADE RLY9159
